Advanced Gantry Welder Systems - Precision Automated Welding Solutions for Industrial Manufacturing

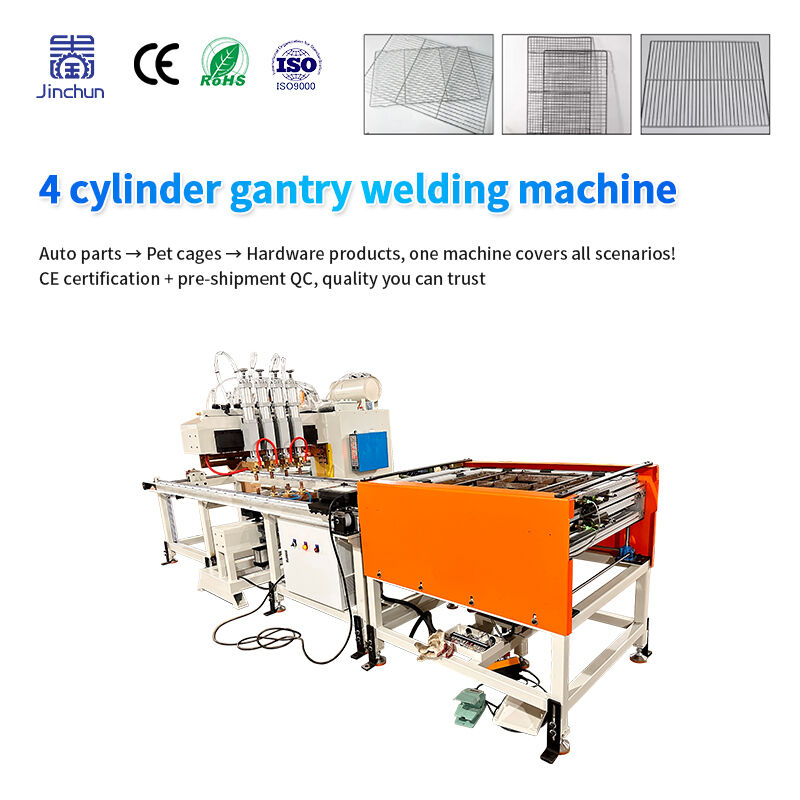

The gantry welder incorporates a sophisticated multi-axis positioning system that revolutionizes welding precision and accessibility. This advanced feature enables the welding torch to move seamlessly along X, Y, and Z axes while maintaining optimal welding angles throughout the entire process. The positioning system utilizes high-precision servo motors and linear guides that provide micron-level accuracy, ensuring consistent weld placement regardless of workpiece complexity or size. This capability proves invaluable when working with intricate geometries or large structural components that require welds in multiple orientations. The multi-axis functionality allows the gantry welder to reach previously inaccessible areas without repositioning the workpiece, dramatically reducing setup time and increasing overall productivity. Manufacturers benefit from the system's ability to maintain consistent travel speeds and torch angles, which directly translates to uniform weld penetration and superior joint strength. The positioning accuracy eliminates the variability associated with manual welding, where human factors can introduce inconsistencies in torch position and movement speed. Advanced interpolation algorithms ensure smooth motion transitions between programmed points, preventing sudden direction changes that could affect weld quality. The system's repeatability specifications typically exceed 0.1mm, enabling manufacturers to achieve tight tolerances required in aerospace, automotive, and precision machinery applications. Programming flexibility allows operators to create complex welding paths that follow three-dimensional contours with ease, opening possibilities for innovative product designs that were previously challenging to manufacture. The positioning system includes collision detection and avoidance features that protect both equipment and workpieces from damage during automated operation. Real-time position feedback systems continuously monitor and adjust torch position, compensating for any mechanical variations or thermal expansion effects. This advanced positioning capability significantly reduces the skill level required for complex welding operations while improving overall weld quality and consistency.

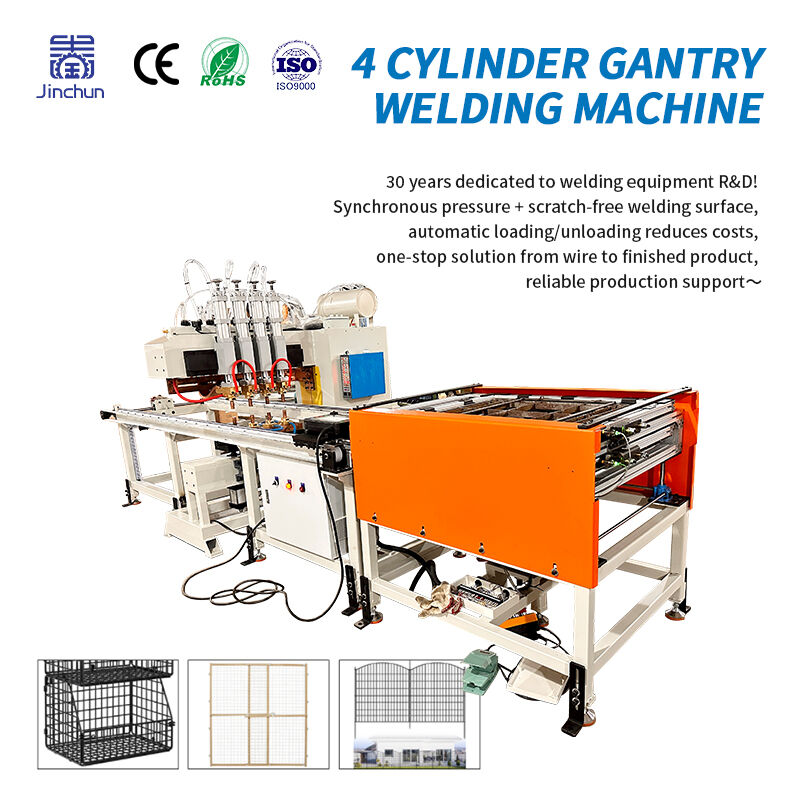

The gantry welder features comprehensive quality monitoring and control systems that provide real-time feedback and automatic adjustments to maintain optimal welding conditions throughout production. This intelligent system continuously monitors critical welding parameters including arc voltage, current, travel speed, and wire feed rate, making instant corrections to prevent defects before they occur. Advanced sensors integrated into the welding head detect variations in joint fit-up, material thickness, and surface conditions, automatically adjusting welding parameters to compensate for these variables. The monitoring system captures extensive data during each welding operation, creating detailed records that support quality assurance programs and regulatory compliance requirements. Machine learning algorithms analyze historical welding data to predict optimal parameter sets for new applications, reducing setup time and improving first-pass success rates. Visual monitoring systems equipped with high-resolution cameras provide operators with real-time views of the welding process, enabling immediate intervention if anomalies are detected. The quality control system interfaces with statistical process control software, generating real-time charts and reports that help identify trends and potential issues before they impact production quality. Automatic weld tracking capabilities ensure the torch follows the joint centerline precisely, even when workpiece positioning varies slightly from programmed coordinates. The system stores complete welding procedure specifications and automatically recalls appropriate parameters when switching between different products or materials. Non-destructive testing integration allows for immediate quality verification without removing parts from the gantry welder, streamlining the inspection process and reducing handling time. Alarm systems alert operators to parameter deviations, consumable depletion, or equipment malfunctions, minimizing downtime and preventing defective production. The quality monitoring system generates comprehensive reports that include welding parameters, process variations, and statistical analysis, supporting continuous improvement initiatives and customer quality requirements.

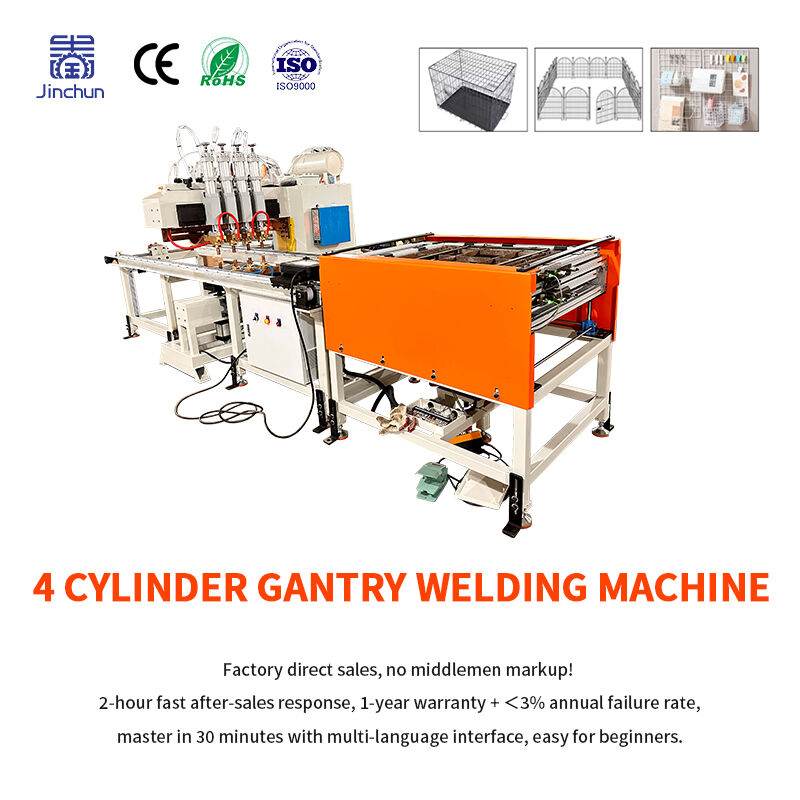

The gantry welder system incorporates versatile workpiece handling and fixturing capabilities that accommodate diverse manufacturing requirements while maintaining precision and efficiency. This flexible approach eliminates the need for multiple specialized welding setups, allowing manufacturers to process various product lines on a single system. The modular fixturing system features quick-change components that enable rapid setup transitions between different workpiece configurations, significantly reducing changeover time and increasing overall equipment effectiveness. Pneumatic and hydraulic clamping systems provide secure workpiece positioning with consistent clamping force, ensuring dimensional accuracy throughout the welding process while preventing distortion caused by thermal expansion. The system accommodates workpieces ranging from small precision components to large structural assemblies, with table sizes and weight capacities customizable to specific application requirements. Rotary positioning devices integrated into the fixturing system enable welding of cylindrical components and complex geometries that require orbital welding techniques. The workpiece handling system includes automated loading and unloading capabilities that integrate with conveyor systems or robotic material handling equipment, creating seamless production flow and reducing manual labor requirements. Precision leveling and alignment features ensure optimal joint preparation and consistent root opening, critical factors for achieving high-quality welds in structural applications. The fixturing system compensates for workpiece variations and tolerances through adjustable support points and adaptive clamping mechanisms that maintain proper joint geometry without over-constraining the assembly. Specialized fixtures for specific industries such as shipbuilding, construction, and heavy equipment manufacturing are available, incorporating industry-specific features like strongback systems for large panel welding or pipe welding fixtures for pressure vessel applications. The handling system includes safety interlocks that prevent welding operations when workpieces are improperly positioned or clamping systems are not fully engaged. Modular design principles allow the fixturing system to evolve with changing production requirements, protecting the initial investment while maintaining system flexibility for future applications and products.
