Industrial Cage Press: Advanced Hydraulic Pressing Solutions for Precision Manufacturing

industrial cage press

The industrial cage press represents a sophisticated hydraulic pressing solution designed to meet demanding manufacturing requirements across multiple industries. This robust machinery utilizes a unique cage-like structural framework that provides exceptional stability and precision during pressing operations. The industrial cage press operates through a powerful hydraulic system that generates controlled pressure to compress, form, or extract materials with remarkable accuracy. Its distinctive cage design features vertical guide columns and horizontal tie rods that create a rigid framework, ensuring consistent pressure distribution and preventing deflection during high-force operations. The technological architecture of the industrial cage press incorporates advanced hydraulic cylinders, precision control valves, and automated positioning systems that work together to deliver repeatable results. Modern units feature programmable logic controllers that allow operators to customize pressing parameters including pressure levels, dwell times, and stroke distances. The press typically includes safety interlocks, emergency stops, and protective barriers to ensure operator safety during operation. Temperature control systems maintain optimal working conditions for heat-sensitive materials. The industrial cage press finds extensive applications in automotive component manufacturing, where it shapes metal parts and assemblies brake pads. In the plastics industry, these presses mold composite materials and thermoplastic components with precision. Pharmaceutical companies utilize industrial cage presses for tablet compression and powder compaction processes. The food processing sector employs these machines for oil extraction from seeds and nuts, while the metalworking industry relies on them for powder metallurgy applications. Mining operations use industrial cage presses for ore concentration and material separation. The versatility of the industrial cage press makes it invaluable for research and development facilities that require precise pressing capabilities for prototype development and material testing across diverse applications.

The industrial cage press delivers significant operational benefits that translate directly into improved productivity and cost savings for manufacturing facilities. Its robust construction eliminates the deflection problems commonly associated with traditional C-frame presses, ensuring consistent part quality throughout extended production runs. The cage design distributes forces evenly across the entire work area, preventing uneven wear on tooling and extending die life considerably. This enhanced durability reduces maintenance costs and minimizes unexpected downtime that can disrupt production schedules. The precision control systems integrated into modern industrial cage press units allow operators to achieve tight tolerances repeatedly, reducing scrap rates and improving overall product quality. The hydraulic system provides smooth, controlled movement that prevents shock loading of components, further extending equipment life and reducing operating costs. Energy efficiency represents another major advantage, as the hydraulic system only consumes power during active pressing operations, unlike mechanical presses that run continuously. The programmable controls enable operators to optimize pressing parameters for different materials and applications, maximizing throughput while maintaining quality standards. Safety features built into the industrial cage press design protect workers and reduce liability risks, while the enclosed work area contains debris and reduces noise levels in the manufacturing environment. The modular design of most industrial cage press systems allows for easy customization and future upgrades, protecting the initial investment and adapting to changing production requirements. Maintenance accessibility is superior compared to other press types, with key components easily reached for routine service and repairs. The industrial cage press typically requires less floor space than equivalent capacity mechanical presses, maximizing facility utilization. Quick changeover capabilities minimize setup time between different jobs, improving overall equipment effectiveness. The consistent pressure application possible with the industrial cage press ensures uniform density in compressed materials, critical for applications requiring specific material properties and performance characteristics.

Latest News

Nov

How Does a 3D Bending Machine Improve Precision in Metal Furniture Manufacturing?

Metal furniture manufacturing has undergone a revolutionary transformation with the introduction of advanced automation technologies. Among the most significant innovations is the implementation of sophisticated bending equipment that delivers unprec...

Dec

2D Bending Machines: Perfect for Pet Cages and Kitchen Organizers

In the world of metal fabrication, efficiency and versatility are key. For manufacturers producing everyday items like pet cages and kitchen organizers, achieving consistent quality, complex designs, and cost-effectiveness is paramount. This is where...

Jan

Automating Mesh Welding with Double-Layer XY Axis Welding Machines

In the modern landscape of metal fabrication, the demand for high-quality mesh products—ranging from storage cages and display shelves to protective fencing and pet enclosures—has never been higher. To meet this demand while maintaining...

Feb

How a 3D Bending Machine Can Revolutionize Your Metal Fabrication Process

In the competitive landscape of metal fabrication, precision and speed are the dual pillars of success. Traditional manual bending methods often struggle with complex spatial geometries and consistency. Enter the 3D Wire Bending Machine (Rotary Head ...

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Phone / WhatsApp

Required Product

Message

0/1000

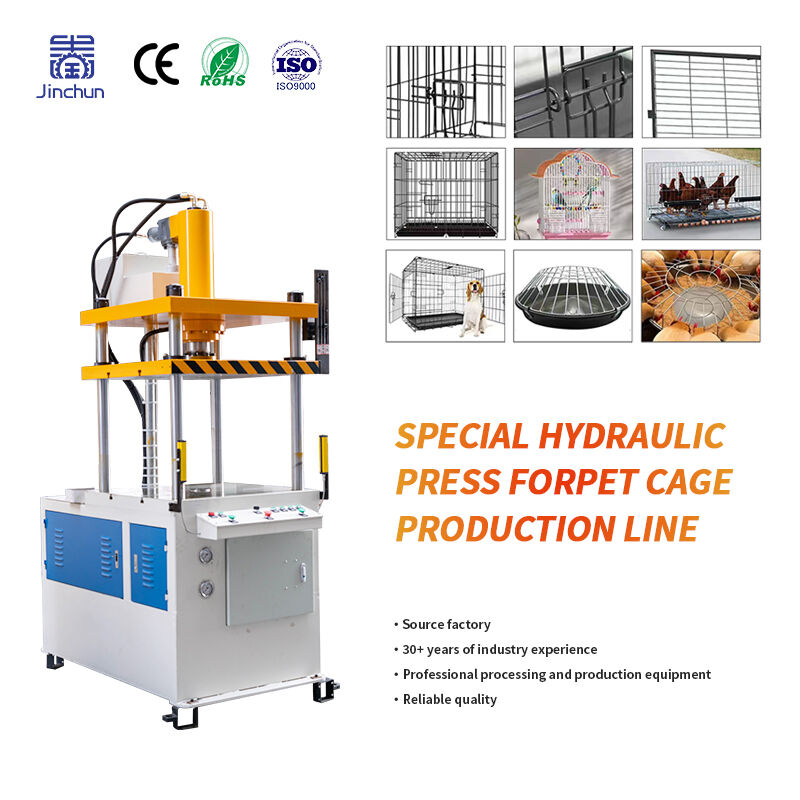

Superior Structural Integrity and Precision

The industrial cage press distinguishes itself through its innovative structural design that delivers unmatched precision and reliability in demanding production environments. The cage framework consists of four vertical columns connected by horizontal tie rods, creating a rigid structure that maintains perfect alignment under extreme loads. This design eliminates the deflection issues that plague traditional C-frame presses, where the frame can bend under high pressures, causing uneven force distribution and compromised part quality. The industrial cage press maintains consistent parallelism between the upper and lower platens throughout the entire stroke, ensuring uniform pressure across the work surface. This structural integrity becomes crucial when producing components that require tight dimensional tolerances or when working with materials that demand precise compression ratios. The guided ram system moves smoothly along hardened and ground guide posts, eliminating side loading and ensuring repeatable positioning accuracy. Advanced manufacturing techniques used in constructing the industrial cage press frame include stress-relieving processes and precision machining that create a stable platform capable of withstanding millions of cycles without degradation. The structural design also accommodates larger work envelopes compared to equivalent capacity C-frame presses, providing greater flexibility in tooling arrangements and part handling. Quality control benefits extend beyond dimensional accuracy to include improved surface finishes on pressed parts, as the consistent pressure application prevents the marking and distortion common with less rigid press designs. The industrial cage press framework can be customized with different column spacings and throat depths to accommodate specific application requirements, while maintaining the structural advantages that define this press type.

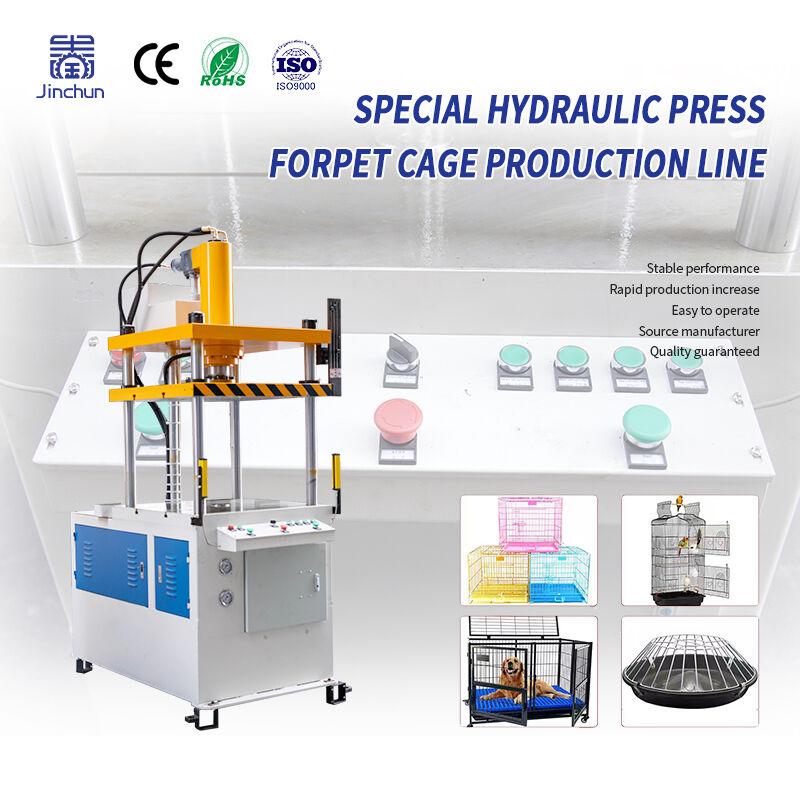

Advanced Hydraulic Control Technology

The hydraulic system integrated into the industrial cage press represents cutting-edge fluid power technology that provides precise control over force, speed, and positioning throughout the pressing cycle. Modern industrial cage press units incorporate servo-controlled hydraulic valves that respond instantly to electronic commands, enabling complex pressing profiles that optimize material flow and part formation. The hydraulic system can generate pressures exceeding 3000 PSI while maintaining smooth, controlled movement that prevents shock loading of both the workpiece and tooling. Proportional pressure control allows operators to program different force levels within a single cycle, accommodating multi-stage forming operations or materials that require gradual pressure application. The industrial cage press hydraulic system includes sophisticated feedback mechanisms that monitor actual pressure and position, automatically adjusting parameters to compensate for material variations or wear in tooling components. Energy-efficient hydraulic designs incorporate variable displacement pumps that adjust output based on instantaneous demand, reducing power consumption and heat generation compared to fixed displacement systems. The closed-loop control system ensures consistent cycle times and pressing forces regardless of variations in hydraulic fluid temperature or component wear. Advanced filtration systems maintain hydraulic fluid cleanliness, extending component life and maintaining system precision over extended operating periods. The industrial cage press can be equipped with multiple hydraulic circuits that operate independently, enabling complex tooling arrangements or simultaneous operation of auxiliary functions such as part ejection or material handling systems. Emergency systems provide instant pressure relief and rapid ram retraction in case of operator intervention or safety system activation. The hydraulic technology enables the industrial cage press to achieve cycle times that match or exceed mechanical press capabilities while providing superior force control and flexibility in application parameters.

Versatile Application Capabilities and Customization

The industrial cage press excels in its ability to accommodate diverse manufacturing applications through extensive customization options and adaptive features that meet specific industry requirements. This versatility stems from the modular design approach that allows manufacturers to configure the industrial cage press with specialized components and accessories tailored to particular processes or materials. Heating systems can be integrated into the platens for applications requiring elevated temperatures, such as thermoplastic forming or powder metallurgy sintering operations. Cooling systems provide temperature control for applications involving heat-sensitive materials or processes that generate excessive heat during compression. The industrial cage press can be equipped with specialized tooling interfaces that accommodate quick-change systems, reducing setup time between different production runs and increasing overall equipment effectiveness. Automation integration capabilities allow the industrial cage press to function as part of larger manufacturing cells, with robotic loading and unloading systems that eliminate manual handling and improve consistency. The press bed can be customized with T-slots, precision locating features, or specialized clamping systems that secure complex tooling arrangements safely and accurately. Stroke length customization enables the industrial cage press to handle parts ranging from thin sheets to thick assemblies without compromising structural integrity or performance. Force capabilities can be tailored from light-duty applications requiring precise control to heavy-duty operations demanding maximum tonnage output. The industrial cage press control system can be programmed with multiple recipes that store optimized parameters for different products, enabling rapid changeovers and consistent results across varying production requirements. Environmental considerations are addressed through optional containment systems that capture debris or fluids generated during pressing operations. Quality monitoring capabilities can include integrated measurement systems that verify part dimensions or material properties during the pressing cycle, enabling real-time process control and immediate detection of variations that could affect product quality.
