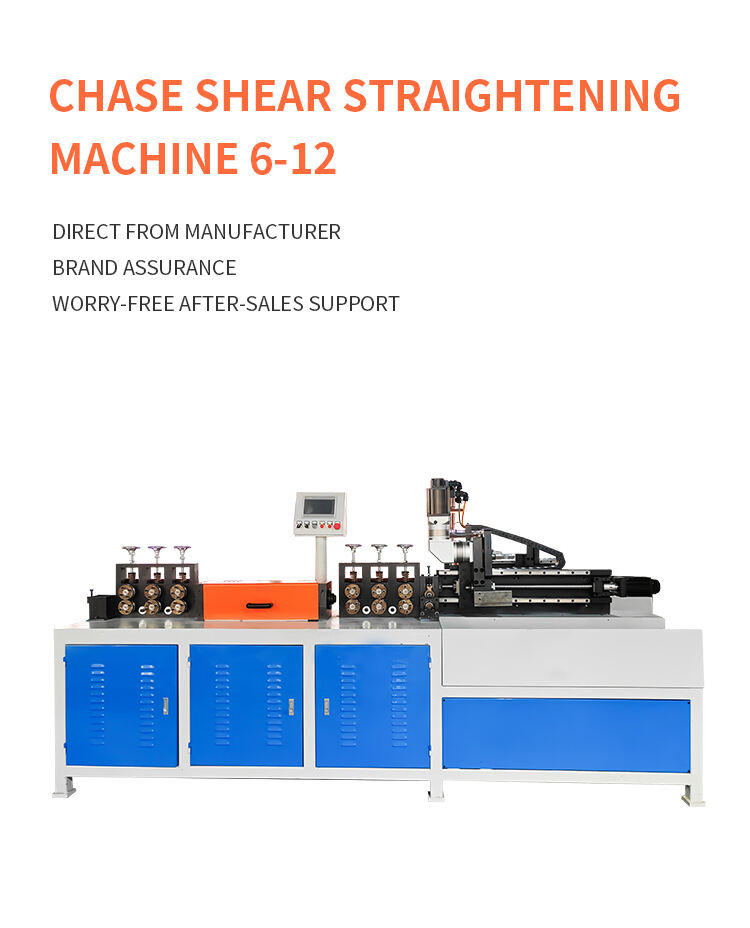

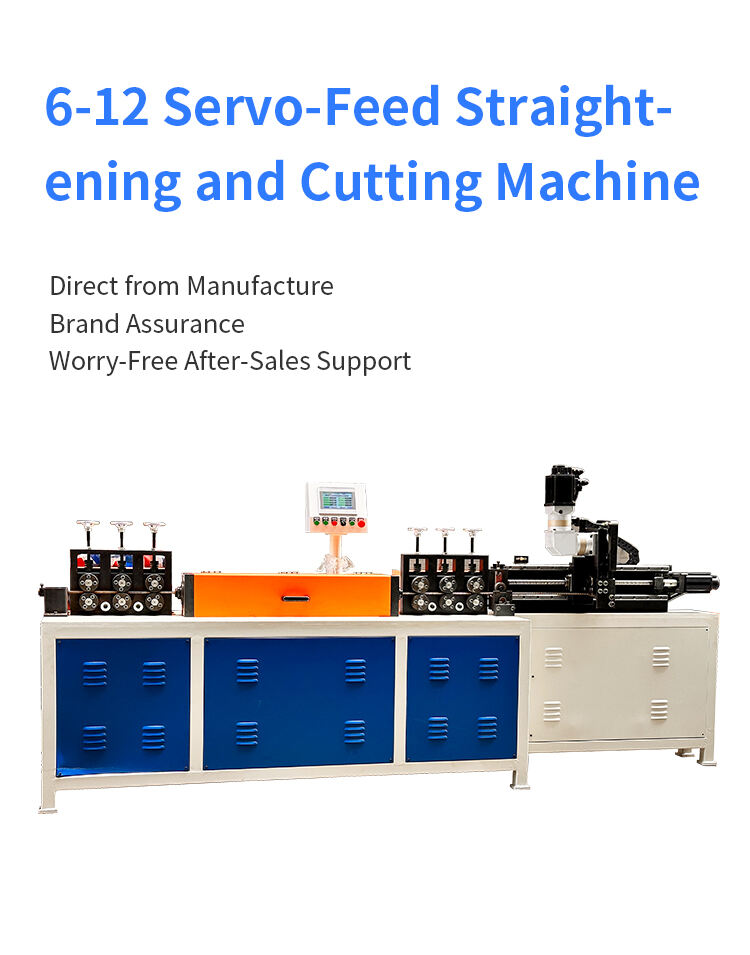

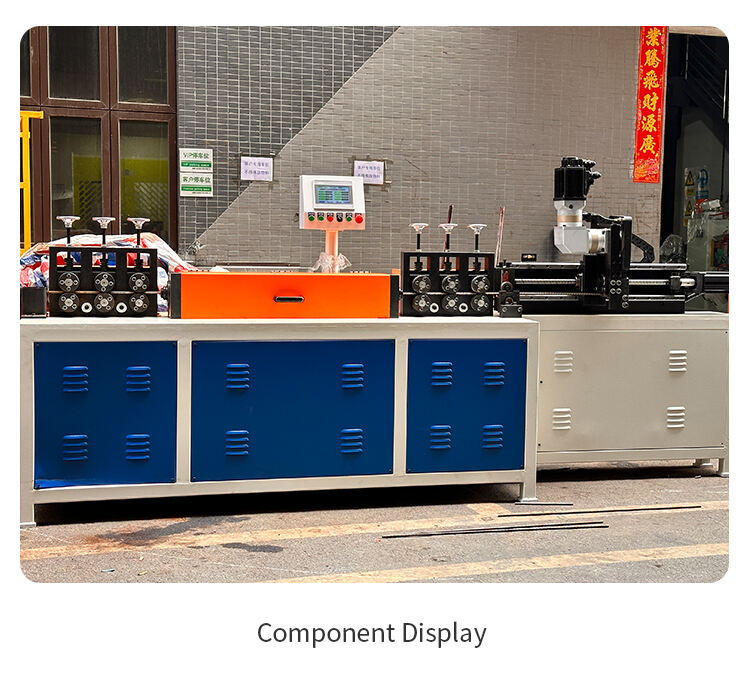

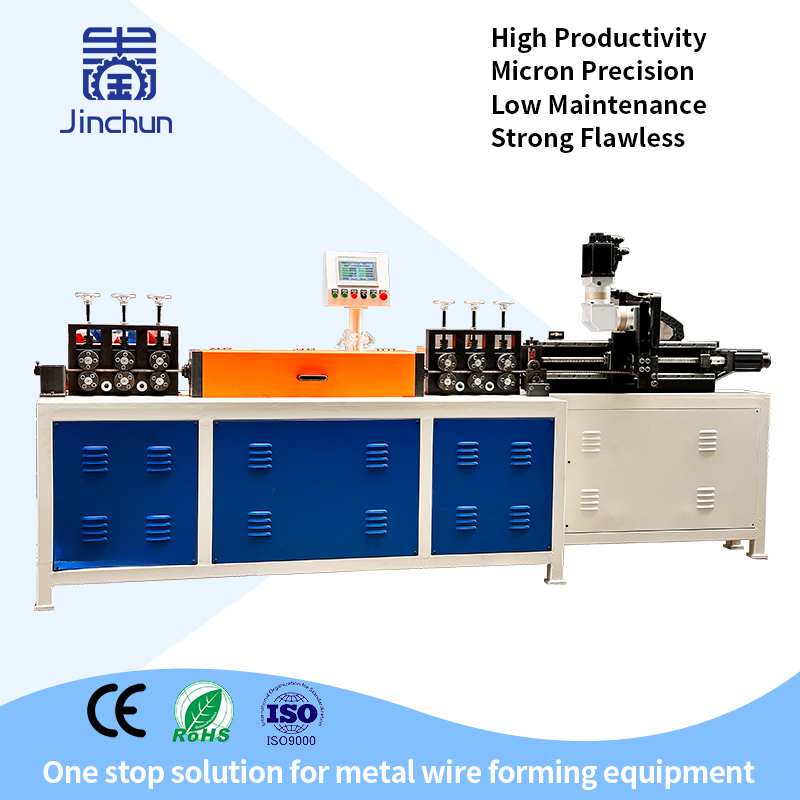

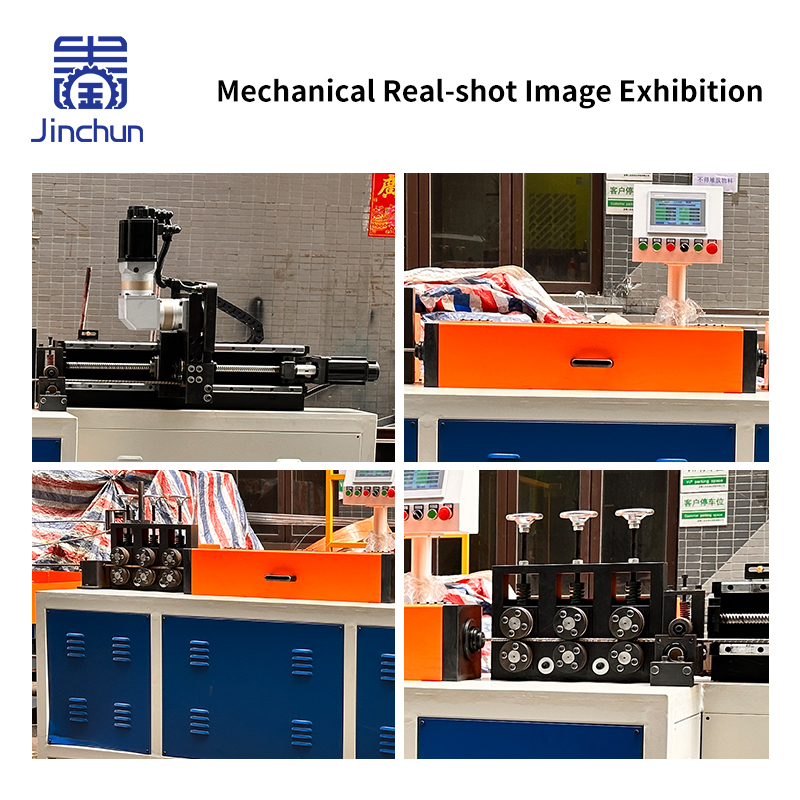

Provides efficient straightening and cutting of round or flat bar materials (iron, stainless steel, aluminum, copper) with diameters of 2-20mm
| Industry basic attributes | Product custom attributes | ||
| Voltage | 380-440V | Product Name | Straightening Machine with Tracking Shear |
| Power (horsepower | 16.2KW | Number of Axes | 3 Axis |
| Feeding speed | over 60m/min | Suitable Wire Material | Low Carbon Iron Wire |
| Type | Straightener & Cutter | Suitable For Wire Diameter | 6-12mm |
| Weight (KG | 1300KG | Length Deviation in Cutting | ±0.5mm |
| Video factory inspection | Provided | Cutting Length Range | Above 50mm |
| Mechanical test report | Provided | Wire Feeding Motor Power | 3.7KW |
| Core component | PLC、Engine、Motor | Straightening Motor Power | 11.0KW |
| Dimensions (length × width × height) | 3070*1050*1550(mm) | Tracking-cut Servo Motor Power | 1.5KW |
| Core selling point | High-accuracy，Automatic，Easy to Operate | Number of Straightening Blocks | 6 pcs |
| Logistics attribute | Volume and weight (including logistics packaging) | ||
| Gross weight (KG):1350KG | Length (CM) : 312 | Width (CM) : 110 | Height (CM):173 |

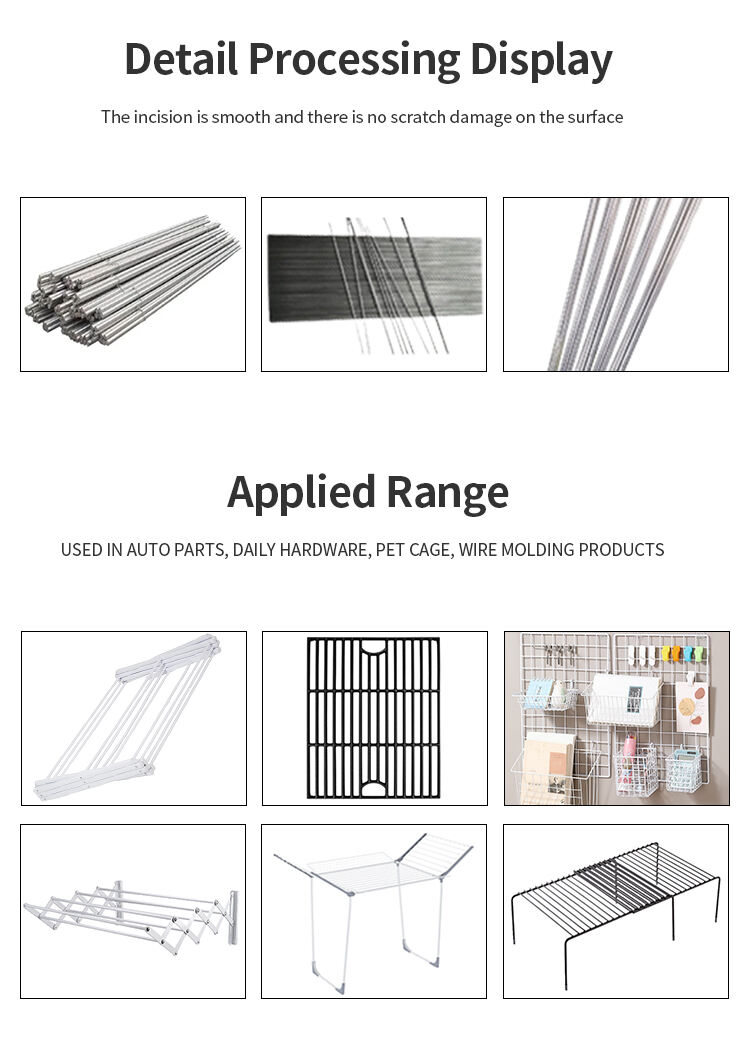

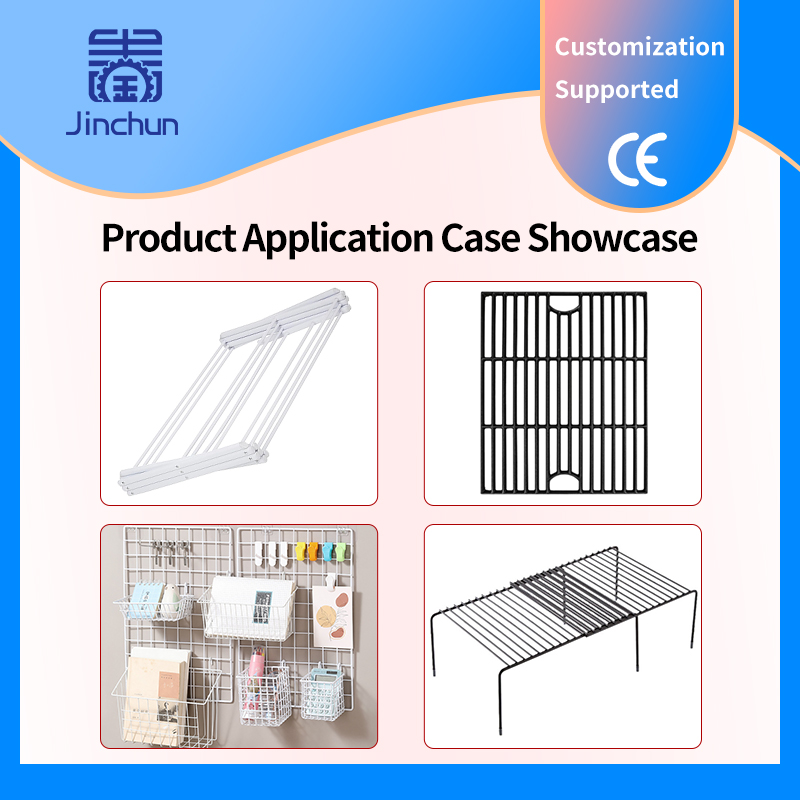

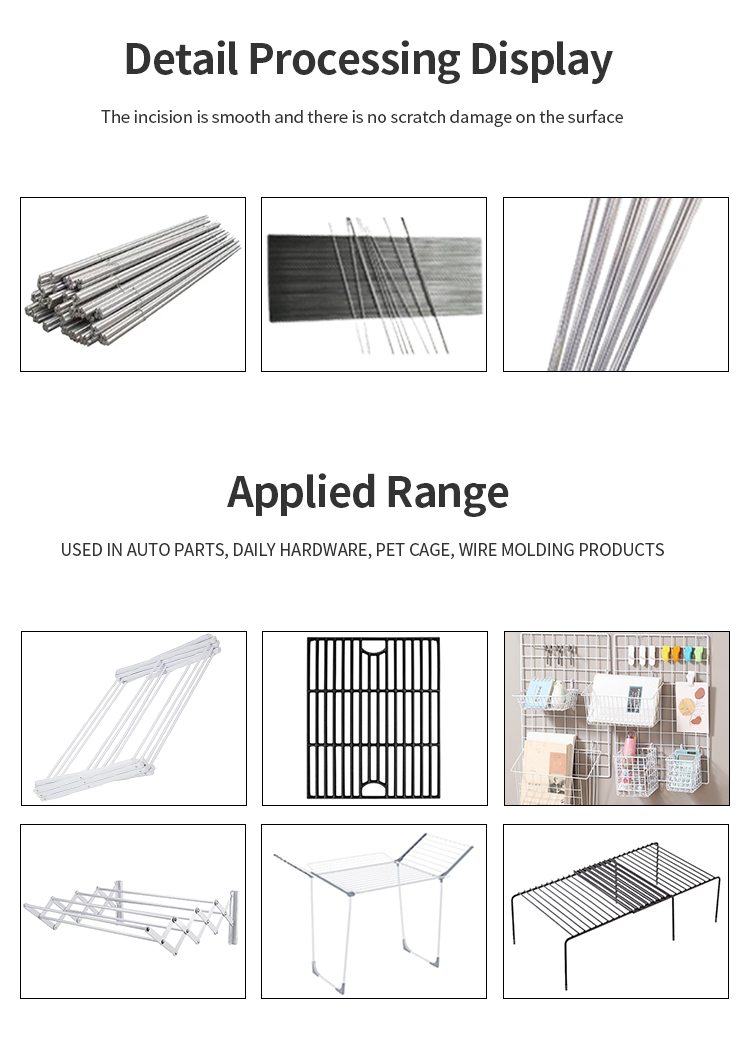

Provides efficient straightening and cutting of round or flat bar materials (iron, stainless steel, aluminum, copper) with diameters of 2-20mm; requires only a mold change. Cutting length ranges from 45mm to 8m, at speeds of 35-55 meters per minute, with an accuracy of up to 0.02mm. Produces straight lengths that are burr-free, scratch-free, and have a smooth surface. Universal molds minimize downtime for changeovers. Custom functions like stamping, flattening, or dot punching are available. Features a multilingual intelligent system with both buttons and a touch screen, allowing beginners to get started within 30 minutes. Applicable for mesh-related industries such as BBQ grids, shopping carts, pet cages, and highway guardrails. Average machine service life exceeds 10 years, with an annual failure rate of less than 3%. The average after-sales service response time is less than 2 hours. The machine comes with a 1-year warranty, undergoes strict quality control (QC) inspection before shipment, and holds CE certification.
