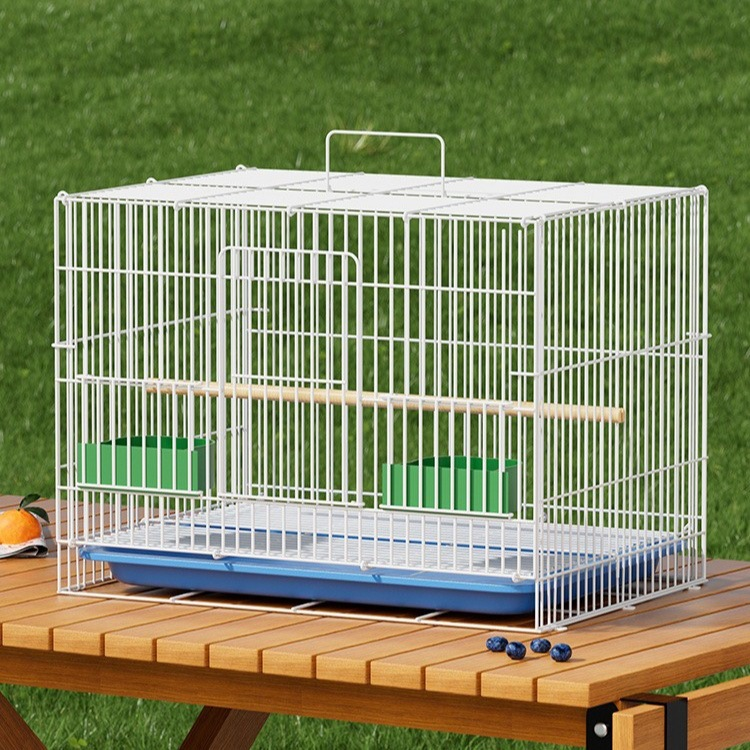

In the highly competitive global pet products market, efficient and precise automated production has become the core pillar of corporate success. Based on the "One-stop Solution" provided by Jinchun Industrial Automation, a modern bird cage production line is no longer a collection of isolated machines, but a highly coordinated automated ecosystem governed by precision software.
This article provides a systematic analysis of the core processes—from raw material preprocessing to frame forming, mesh welding, and accessory manufacturing—that define the logic of modern cage production.
1. Raw Material Preprocessing: Precision Straightening and Cutting
Every high-quality bird cage begins with strict control over the wire material.
Core Equipment: Automatic Wire Straightening and Cutting Machine.
Process Logic: The production line typically starts with wire coils. The straightening machine uses a series of cross-aligned rollers to eliminate the internal stress generated during the coiling process.
Technical Highlight: Modern equipment utilizes "Flying Shear" or "Tracking Shear" technology. This allows the wire to be cut at high speeds without stopping the feed, ensuring a smooth cross-section and extremely tight length tolerances—a prerequisite for seamless automated welding.
2. Complex Geometric Shaping: CNC Bending Technology
Bird cage designs are increasingly diverse, featuring numerous arcs, right angles, and 3D spatial transitions.
Core Equipment: CNC 2D/3D Wire Bending Machine.
Process Logic: * 2D Bending: Primarily used for manufacturing side frames, door frames, and bottom trays.
3D Bending: Specifically designed for high-end cages with complex domes or integrated 3D supports.
Technical Highlight: Through CNC programming, a single machine can store hundreds of bending programs. Servo-driven bending heads ensure that every batch is geometrically identical, significantly reducing the scrap rate associated with traditional manual bending.
3. Structural Integrity: Multi-Axis Automated Mesh Welding
This is the most critical stage for efficiency. The body of a bird cage consists of countless intersecting wires, and the quality of the welds determines the structural lifespan of the product.
Core Equipment: XY-axis Welding Machine & Gantry Automatic Welding Machine.
Process Logic: XY-axis Welding: Ideal for small-to-medium-sized cages requiring high precision. The welding head moves at high speed along a preset path to spot-weld every intersection.
Gantry Welding: Designed for mass production. Multiple welding heads press down simultaneously to complete an entire row of welds in one stroke, dramatically shortening the production cycle.
Technical Highlight: The use of Medium Frequency Inverter welding technology ensures precise control over current and pressure. This results in firm joints without unsightly burn marks, providing a perfect surface for subsequent powder coating or plating.
4. Specialized Component Production: Ring Forming and Buckles
A bird cage is more than just a welded mesh; it requires various connectors and decorative elements.
Core Equipment: Ring Forming and Butt Welding Integrated Machine & Buckle Machine.
Process Logic: * Ring Forming: Top hanging rings or support hoops are produced in a single cycle—feeding, coiling, cutting, and butt welding.
Buckle Production: Door locks and panel connectors are formed using high-speed buckle machines or specialized hydraulic presses with precision molds.
Technical Highlight: This integrated approach reduces material handling between stations, preventing part deformation or loss during transport.
5. The Logical Advantages of a "One-Stop Solution"
The value of the Jinchun Industrial "One-stop Solution" lies in its closed-loop logic:
A. Minimal Material Handling Costs
In traditional factories, straightening, bending, and welding are often separated into different workshops. A one-stop line connects these units via conveyor tracks or robotic arms, achieving a "wire-in, finished-cage-out" workflow.
B. Flexible Manufacturing Capability
The pet market evolves rapidly. Through unified PLC control systems, manufacturers can switch from producing small canary cages to large parrot cages in minutes simply by loading different parameter sets, enabling high-mix, low-volume flexibility.
C. Full Life-Cycle Quality Monitoring
In an integrated line, every stage—such as tension testing after welding or angle verification after bending—can be connected to a digital monitoring system. This ensures every bird cage leaving the factory meets the highest standards of durability and safety.
Conclusion
The evolution of the modern bird cage production line is a microcosm of the advancement in metal wire forming—moving toward total automation and integration. By combining straightening, CNC bending, precision welding, and integrated accessory forming, Jinchun Industrial provides more than just machinery; it provides a high-efficiency production logic. This solution addresses the pain point of high labor costs while enhancing the aesthetic value and structural reliability of the final product.
