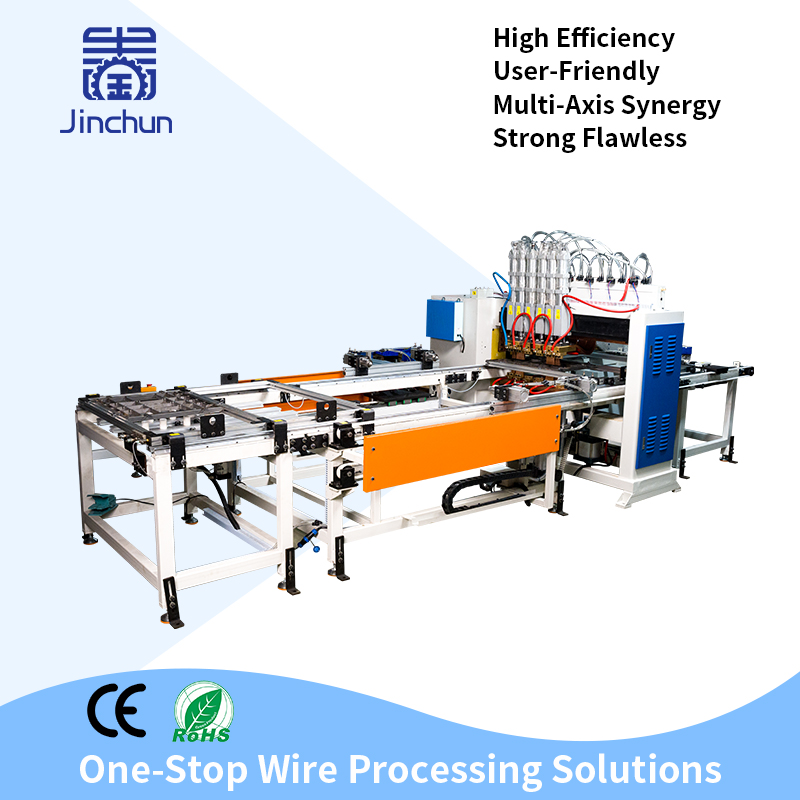

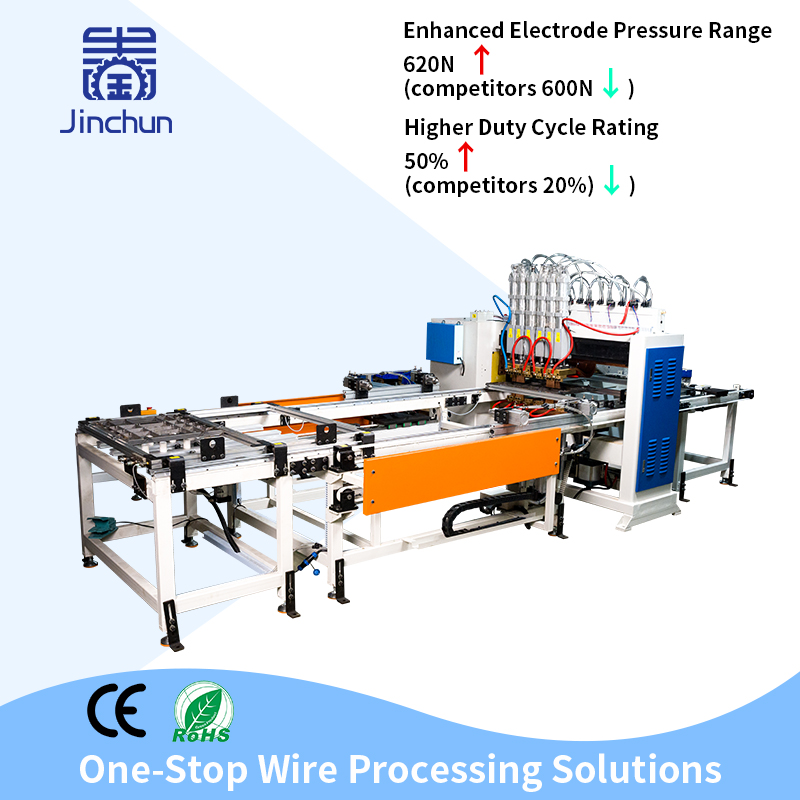

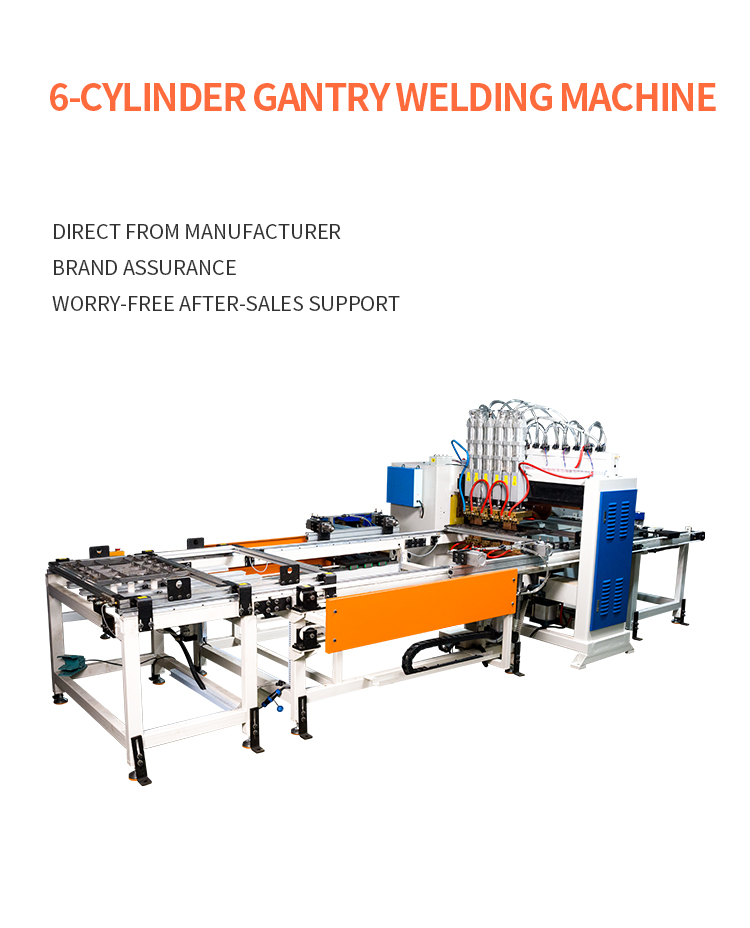

Features 2-16 welding heads and cylinders, ideal for mesh panel production
| Industry basic attributes | Product custom attributes | ||
| Types of machines | Gantry Welding Machine | Product Name | Gantry Welding Machine |
| Rated capacity | 125KVA | Rated Frequency | 50Hz |
| Type | Welding Head | Number of Pressurizing Mechanisms | 2pcs |
| Material |
Iron Stainless Steel Metal Copper Carbon |
Welding Process | Row Welding |
| Maximum input power | 125KW | Working Air Pressure | 0.5-0.7MPa |
| Status | New | Cooling Water Flow | 30L/min |
| Voltage | 380V | Working Height | 800-900mm |
| Weight (KG | 1500KG | Pressurization Method | Pneumatic |
| Current | 38.5KA | Electrode Stroke | 60-80mm |
| Rated load duration | 50% | Fixture Travel Speed | 1800mm/s |
| Size specification | High-accuracy，Automatic，Easy to Operate | Welding form | TIG/AC RW/IF RW |
| Logistics attribute | Volume and weight (including logistics packaging) | ||
| Gross weight (KG):1500kgs | Length (CM) : 2150 | Width (CM) : 2000 | Height (CM):1050 |

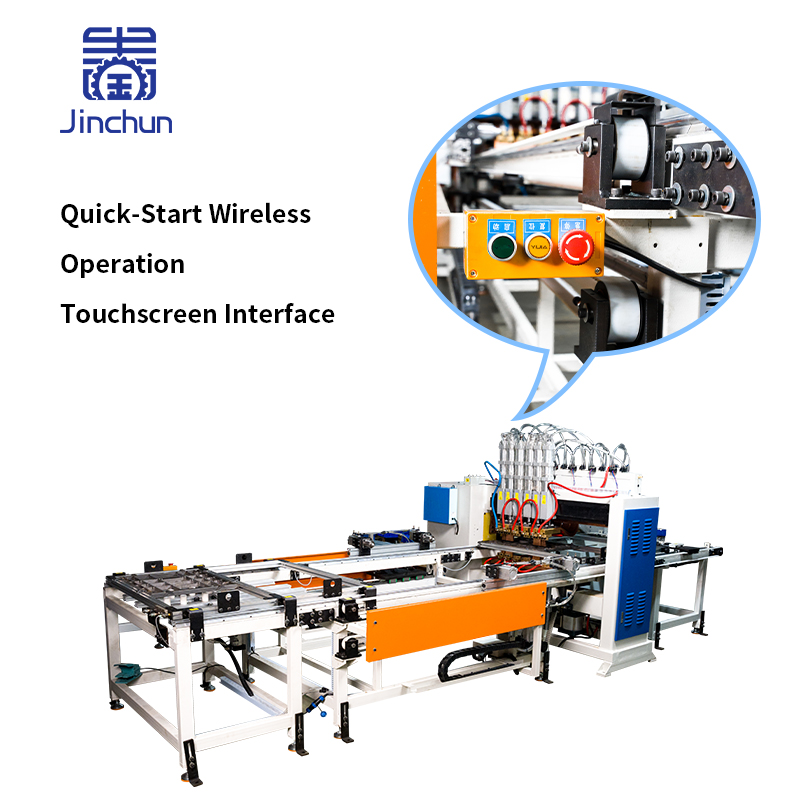

Features 2-16 welding heads and cylinders, ideal for mesh panel production. Welds 1-5 panels per minute. Optional automated loading/unloading for unmanned operation. Handles wire/flat bar ≤16mm. Selectable welding methods based on material. Customizable jigs ensure strong, test-passing welds with adjustable current for smooth surfaces. Operators can learn within 30 minutes. Multilingual controls. Suitable for high-volume mesh products (BBQ grids, pet cages, carts, racks). Average service life exceeds 10 years, annual failure rate <3%. Average after-sales response time <2 hours. 1-year warranty. Strict pre-shipment QC. CE certified.
