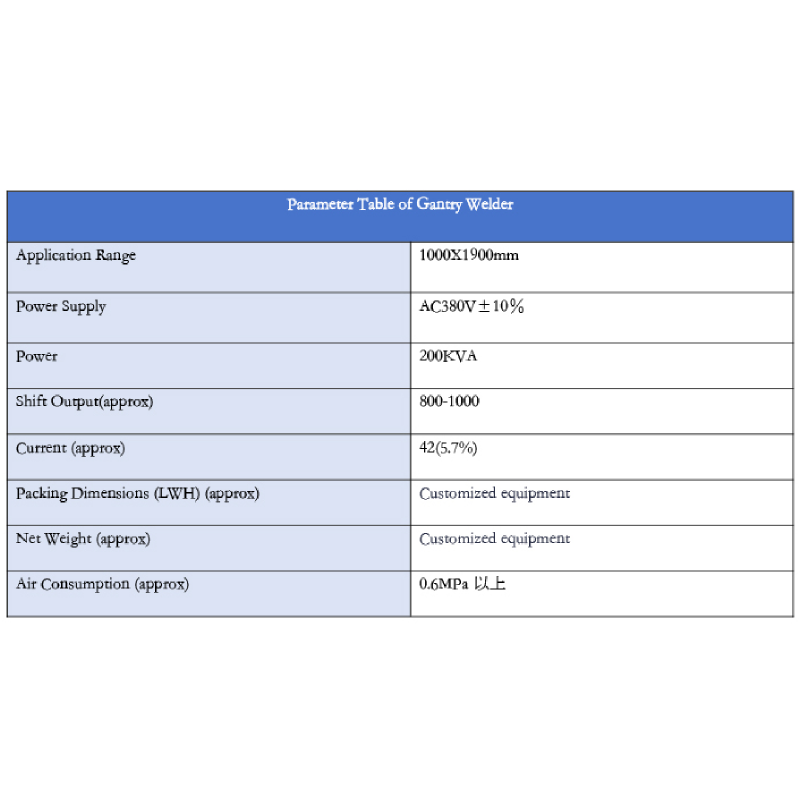

Product Specification: Gantry welding machine
| Industry basic attributes | Product custom attributes | ||
| Types of machines | Gantry Welding Machine | Product Name | Gantry Welding Machine |
| Rated capacity | 125KVA | Rated Frequency | 50Hz |
| Type | Welding Head | Number of Pressurizing Mechanisms | 2pcs |
| Material |
Iron Stainless Steel Metal Copper Carbon |
Welding Process | Row Welding |
| Maximum input power | 125KW | Working Air Pressure | 0.5-0.7MPa |
| Status | New | Cooling Water Flow | 30L/min |
| Voltage | 380V | Working Height | 800-900mm |
| Weight (KG | 1500KG | Pressurization Method | Pneumatic |
| Current | 38.5KA | Electrode Stroke | 60-80mm |
| Rated load duration | 50% | Fixture Travel Speed | 1800mm/s |
| Size specification | 2240*750*1900mm | Welding form | TIG/AC RW/IF RW |
| Logistics attribute | Volume and weight (including logistics packaging) | ||
| Gross weight (KG) : 1500kgs | Length (CM) : 2150 | Width (CM) : 2000 | Height (CM) : 1050 |

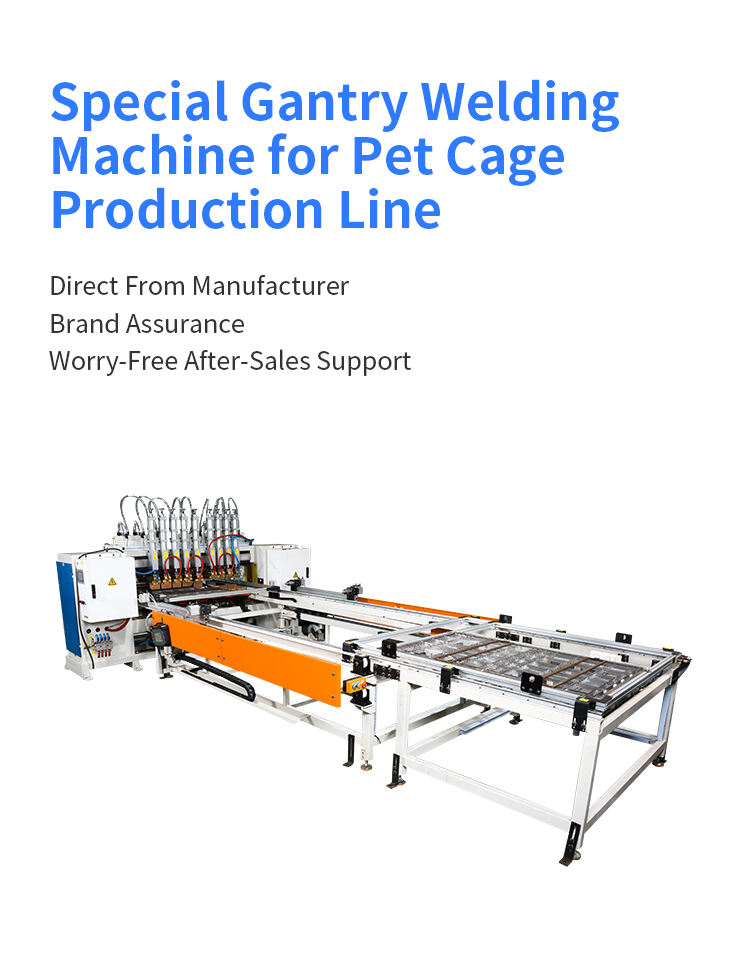

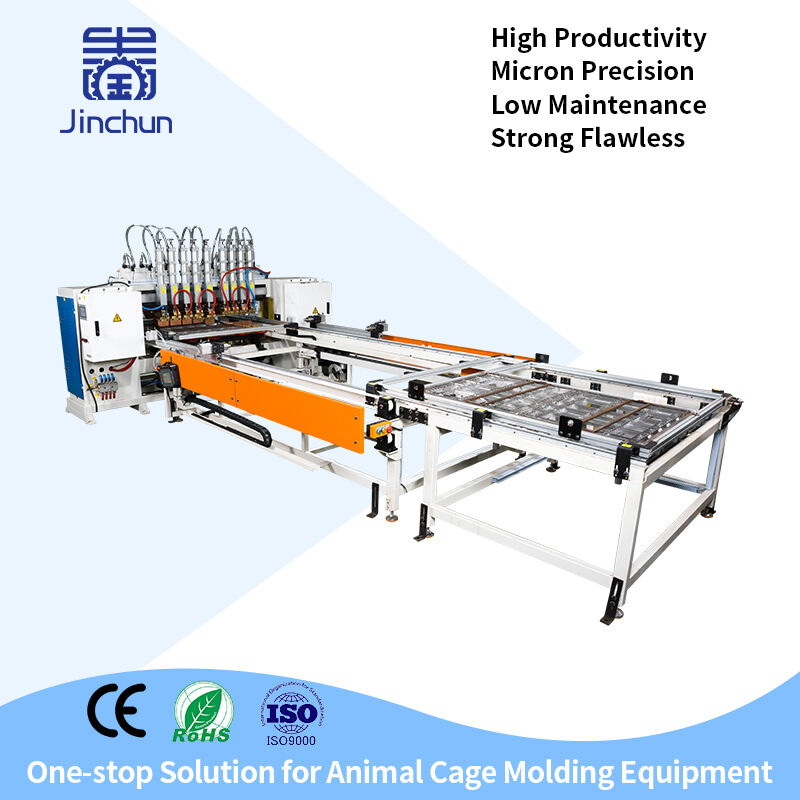

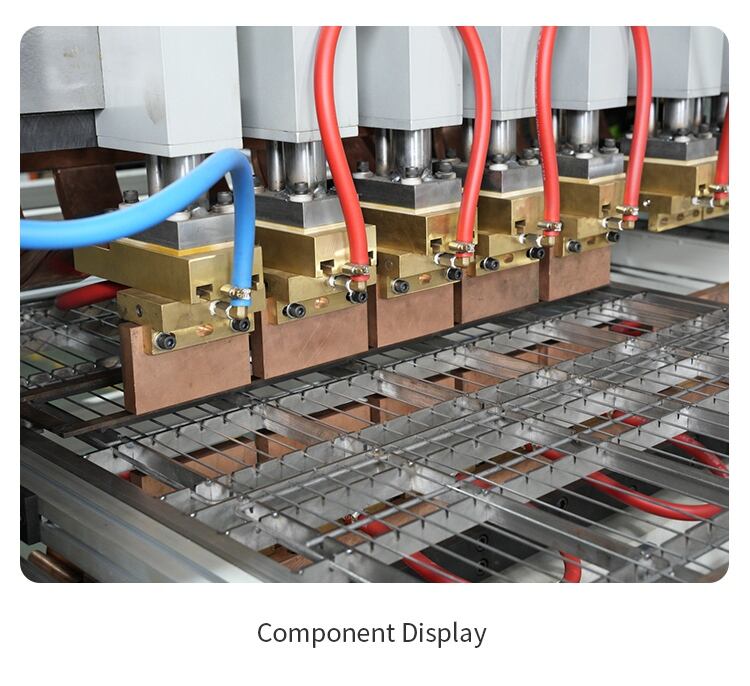

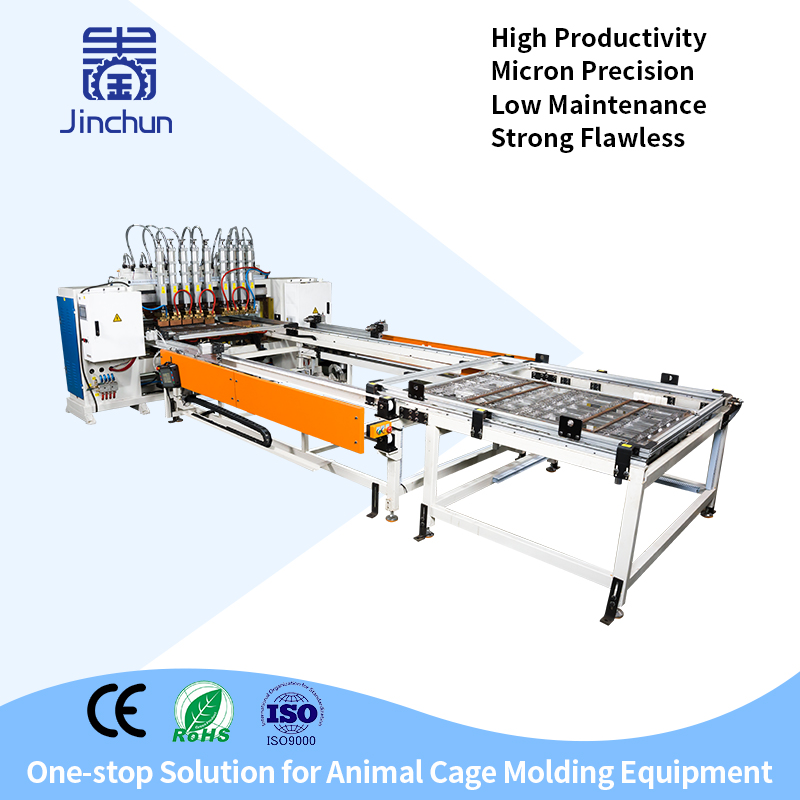

The Gantry Welding Machine, equipped with 2-16 welding heads and a pneumatic welding cylinder, is the perfect choice for welding mesh products. It can weld 1-5 meshes per minute and features optional automated loading and unloading, allowing for unmanned production. It can process metal wires and flat iron (iron, stainless copper, aluminum, and copper) ≤16mm in diameter. Welding methods include AC welding (for iron wire) and medium-frequency welding (for stainless steel), depending on the product material. Customized welding molds and positioning dies can be customized according to product drawings, ensuring strong welds that can pass tensile tests. Adjustable current ensures a smooth, scar-free surface. New users can quickly learn how to use it in 30 minutes, ensuring ease of use. Multi-language buttons and touchscreen operation make it suitable for connecting mesh products such as barbecue grills, pet cages, shopping carts, and storage racks. The machine boasts an average service life of over 10 years, an annual failure rate of less than 3%, and an average after-sales response time of less than two hours. The machine comes with a one-year warranty, rigorous quality control before shipment, and is CE certified.
