| Industry Basic Attributes | WS6-016 | Product Custom Attributes | |
| Rated Capacity | 16KVA | Product Name | Spot Welding Machine |
| Maximum Welding Thickness | 32mm | Rated Frequency (Hz) | 50Hz |
| Voltage | 380V | Maximum Short-Circuit Current | 25KA |
| Power (kW) | 16KW | Maximum Pressure | 200N |
| Condition | New | Stroke of Upper Electrode | 40/80mm |
| Place of Origin | China | Stroke of Lower Electrode | 55mm |
| Province | Guangdong | The Max Welding Length（Deep*Height) | 350mm |
| Brand | JinChun | Dimension Between Arms | 435mm |
| Rated Duty Cycle | 50% | Cooling Water Volume | 2L/min |
| Size Specifications | 1250*600*1800mm | Electrode Size | 14mm |
| Application | Welding Machine | Is customization available | Customizable |
| Warranty Period | 1 Year | ||
| Gross Weight (KG) | 400KG | ||
| Logistics Attributes | Volume & Weight (Including Logistics Packaging) | ||
| Gross Weight (KG)： Customizable | Length (CM)：Customizable | Width (CM)：Customizable | Height (CM)：Customizable |

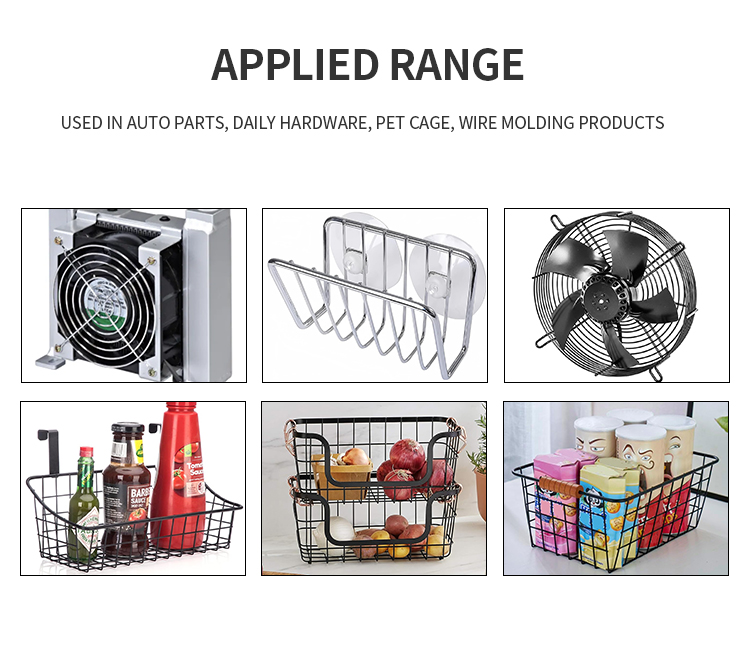

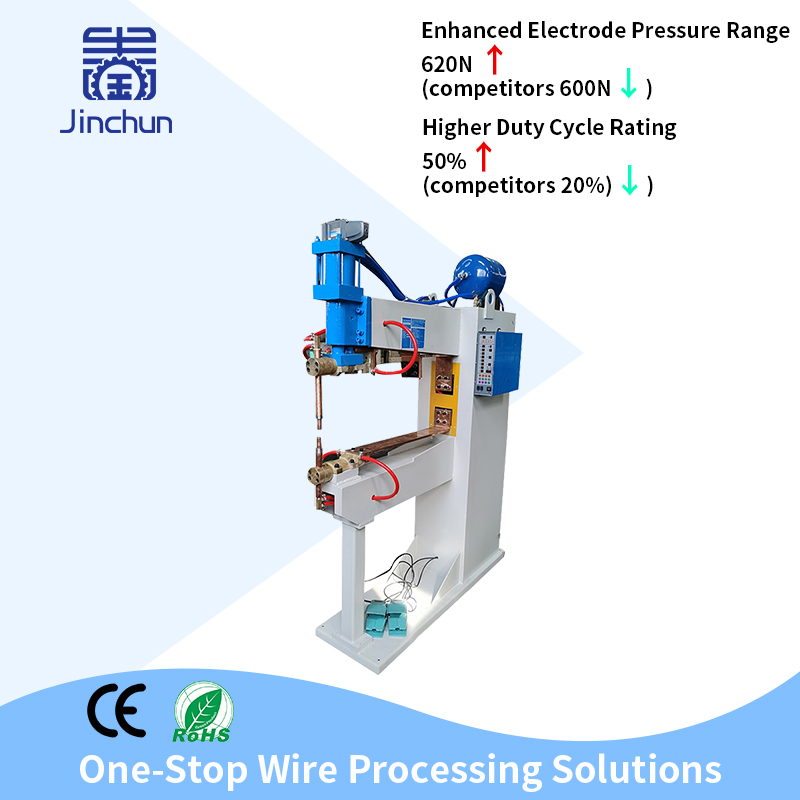

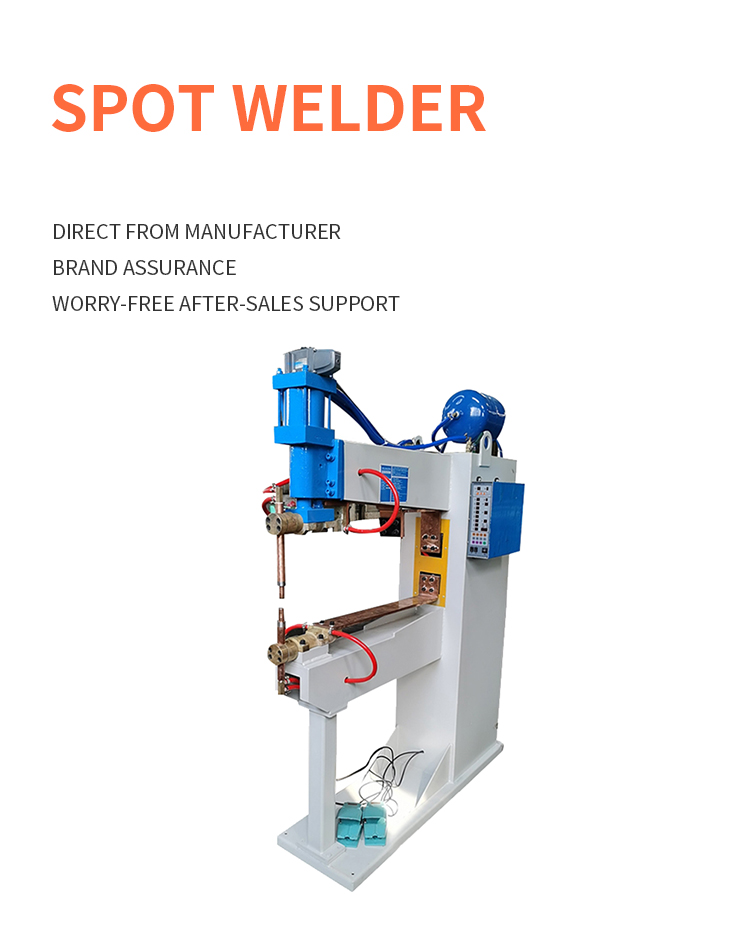

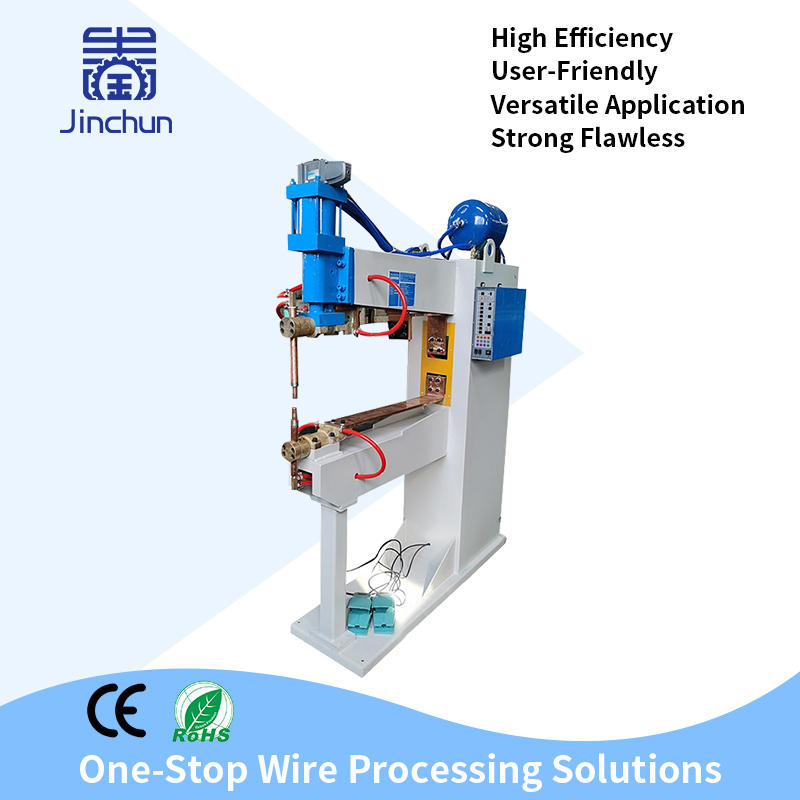

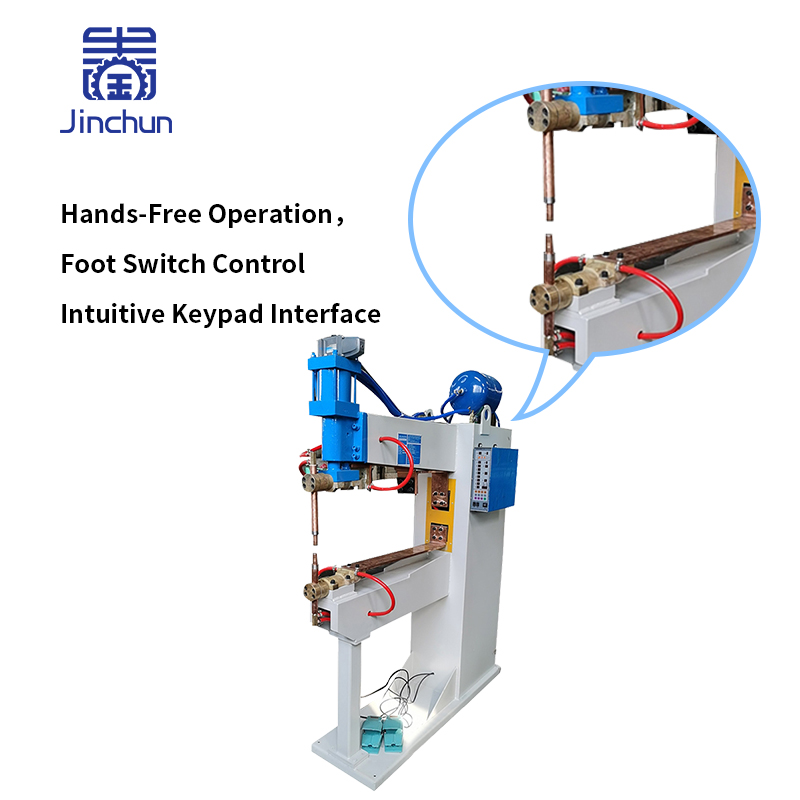

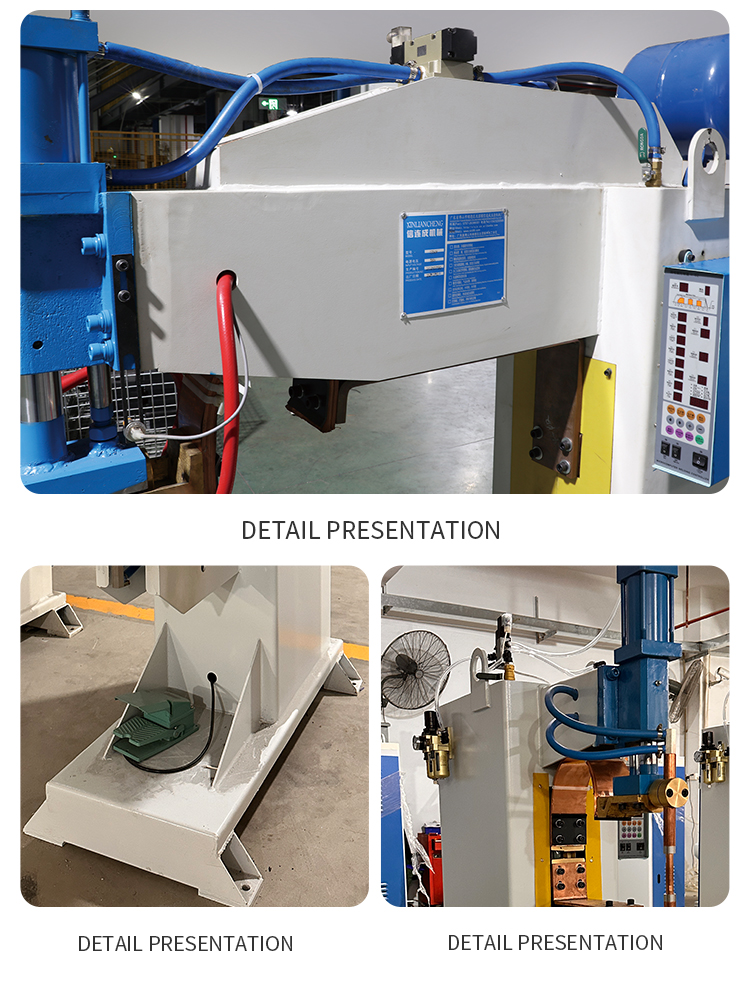

A spot welder with a circular welding head, capable of processing metal wire or flat bar (iron, stainless steel, aluminum, copper) ≤16mm. Output: 20-25 spots/minute. The welding method (e.g., AC for iron, Medium Frequency for stainless steel) can be selected based on material. Welding and positioning jigs can be customized from product drawings, producing strong welds that pass pull tests. Features adjustable current for smooth, scar-free surfaces. Foot pedal operation allows beginners to learn within 5 minutes. Multilingual button/touch control. Suitable for joining hardware components. Average machine service life exceeds 10 years, with an annual failure rate of less than 3%. The average after-sales service response time is less than 2 hours. The machine comes with a 1-year warranty, undergoes strict quality control (QC) inspection before shipment, and holds CE certification.
