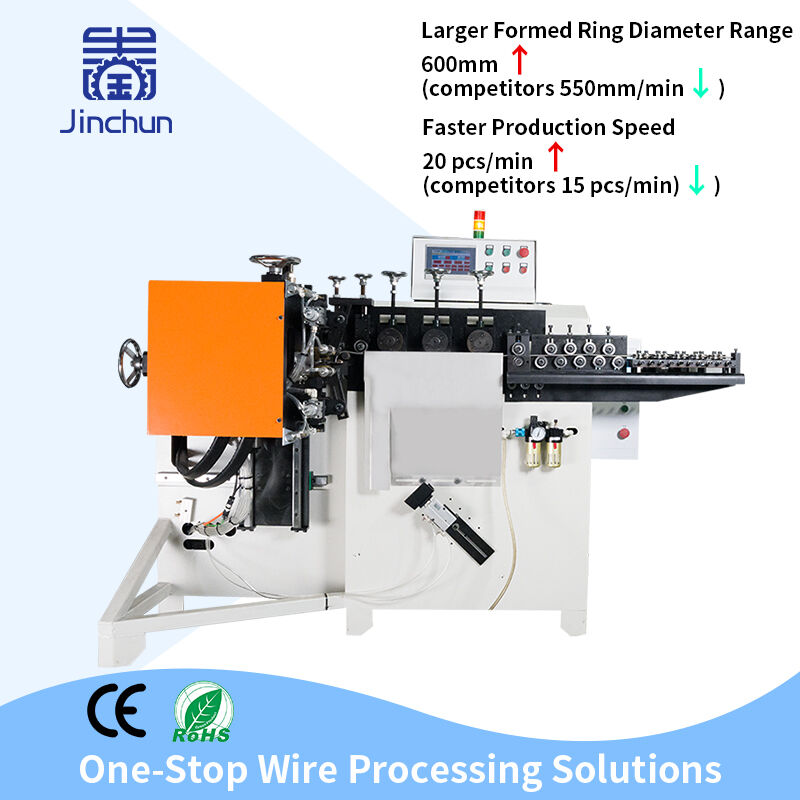

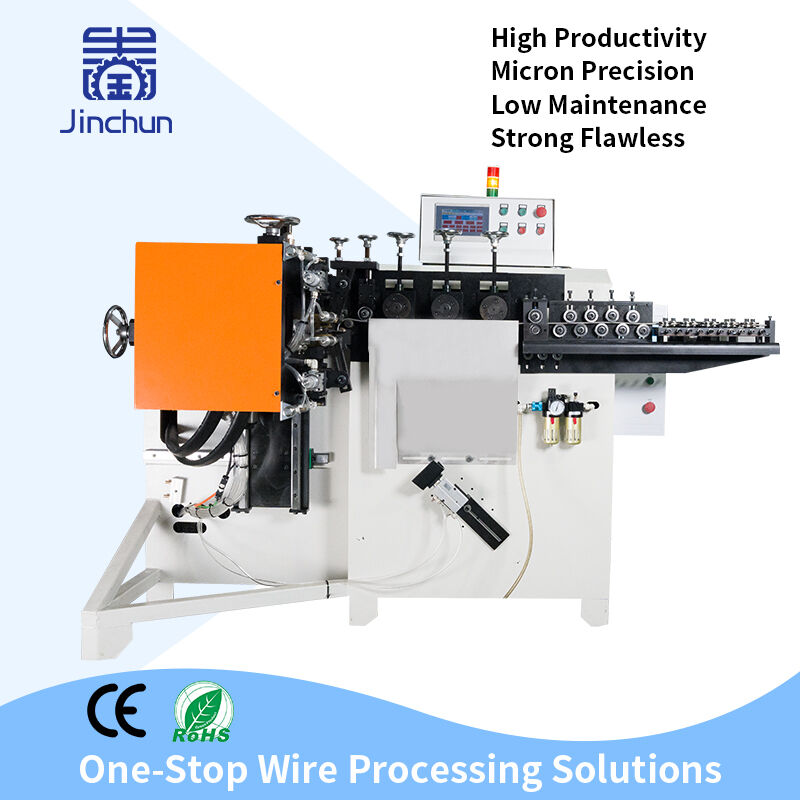

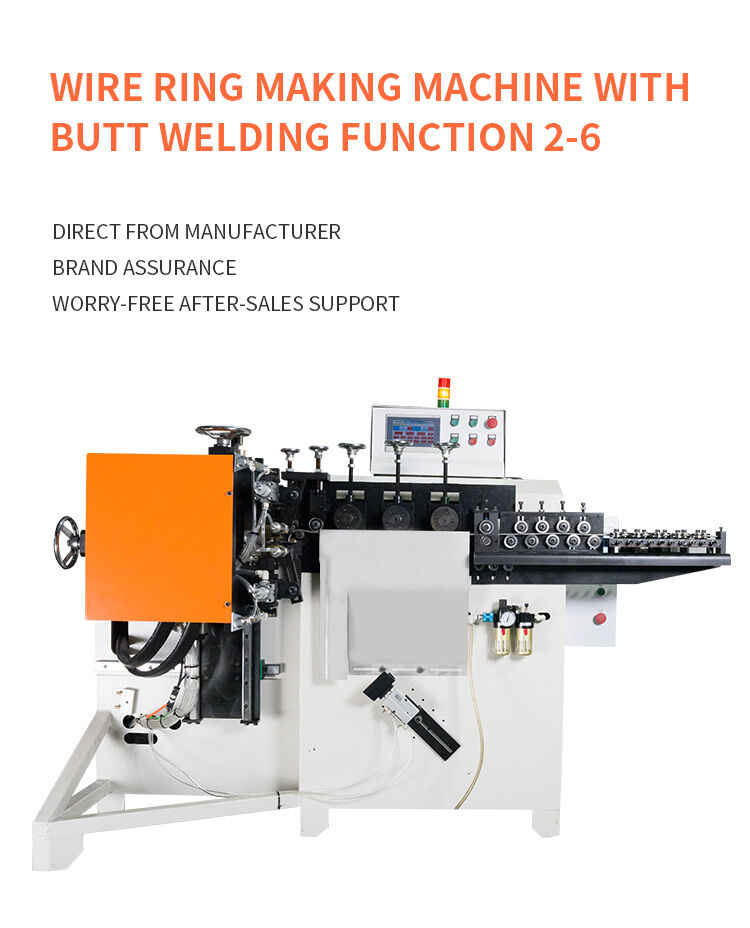

Integrates circle forming and welding. Suitable for round or flat bar materials (iron, stainless steel, aluminum, copper) with diameters of 1-16mm
| Industry basic attributes | Product custom attributes | ||
| Machine type | Ring Forming and Welding Machine | Machine Size | 1950*1450*1500mm |
| Voltage | 380-440V | Suitable Wire Material | Low Carbon Iron Wire |
| Power (KW) | 54.8KW | Suitable For Wire Diameter | 2-6mm |
| Machine type | Ring Forming and Welding Machine | Circumferential Accuracy | ±0.5mm |
| Weight (KG) | 800 | Formed Ring Diameter Range | 35-550mm |
| Video factory inspection | Provided | Servo Motor Power | 2.6KW |
| Mechanical test report | Provided | Hydraulic Motor Power | 2.2KW |
| Core component | PLC、Engine、Motor | Welding Power | 50KW |
| Core selling point | High-accuracy，Automatic，Easy to Operate | Production Speed | 10-20pcs/min |
| Logistics attribute | Volume and weight (including logistics packaging) | ||
| Gross weight (KG) : 810KG | Length (CM) : 2390 | Width (CM) : 1630 | Height (CM):1710 |

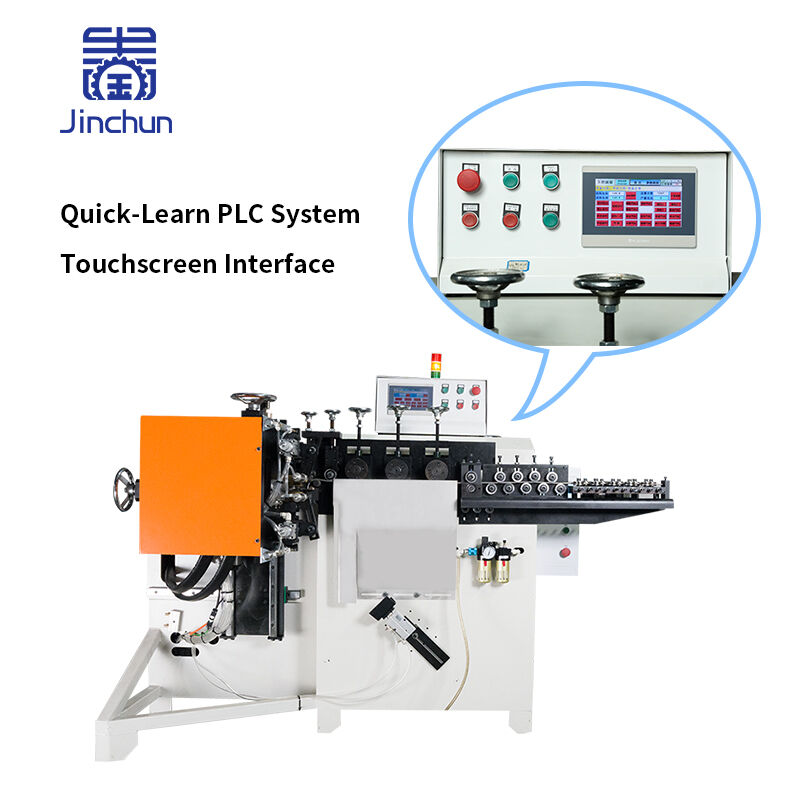

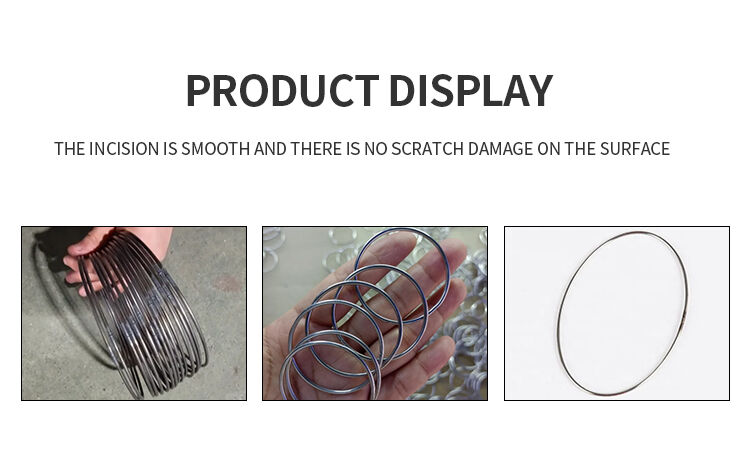

Integrates circle forming and welding. Suitable for round or flat bar materials (iron, stainless steel, aluminum, copper) with diameters of 1-16mm; requires only a mold change. The circle diameter range is 30mm-2000mm (customizable). Production speed is 20-40 circles per minute with an accuracy of up to 0.02mm. Produces flat, round rings without scratches, with a smooth surface and no weld scars, achieving a high yield rate of 99.9%. Universal molds minimize downtime for changeovers. Custom functions like welding or stamping are available. Features a multilingual intelligent system with both buttons and a touch screen, allowing beginners to get started within 30 minutes. Applicable for furniture, hardware, automotive/motorcycle parts, and kitchenware industries. Average machine service life exceeds 10 years, with an annual failure rate of less than 3%. The average after-sales service response time is less than 2 hours. The machine comes with a 1-year warranty, undergoes strict quality control (QC) inspection before shipment, and holds CE certification.
