Independently controlled forming axes provide flexible programming, efficient changeovers, and repeatable production of diverse spring geometries.

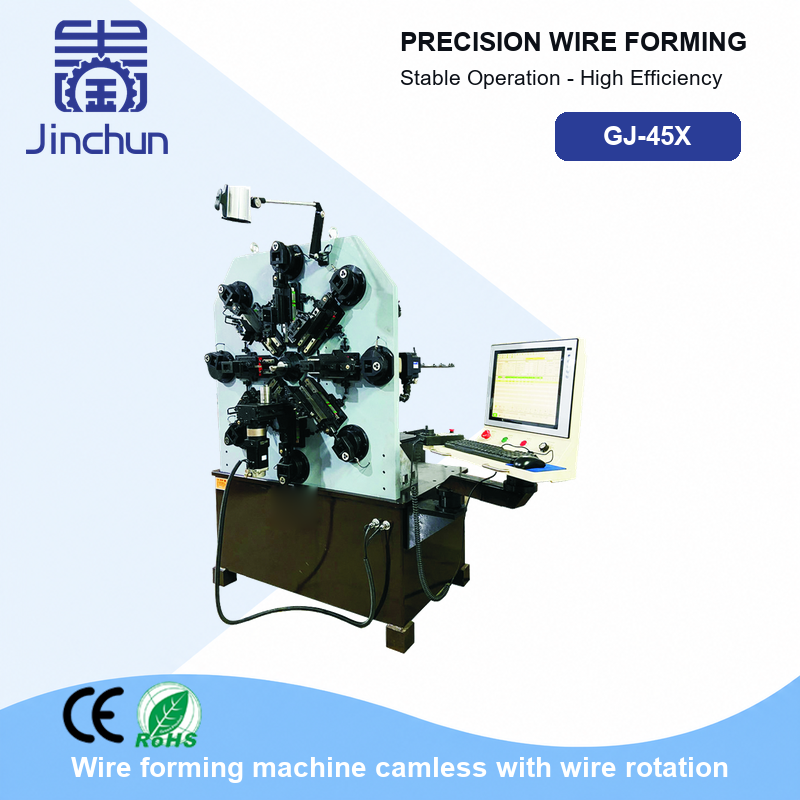

The Multi Axis Camless Spring Forming Machine is designed for manufacturing complex springs and precision wire-formed components. Instead of using conventional mechanical cam plates, the machine controls its forming tools through independently programmable axes.
This camless architecture allows tool movements, positions, and timing to be adjusted digitally for each product. It is well suited to spring manufacturers handling varied part designs, frequent changeovers, and production sequences that require multiple coordinated forming operations.
Core Features
The number of axes, individual axis functions, processing range, and optional devices should be confirmed for the selected model.

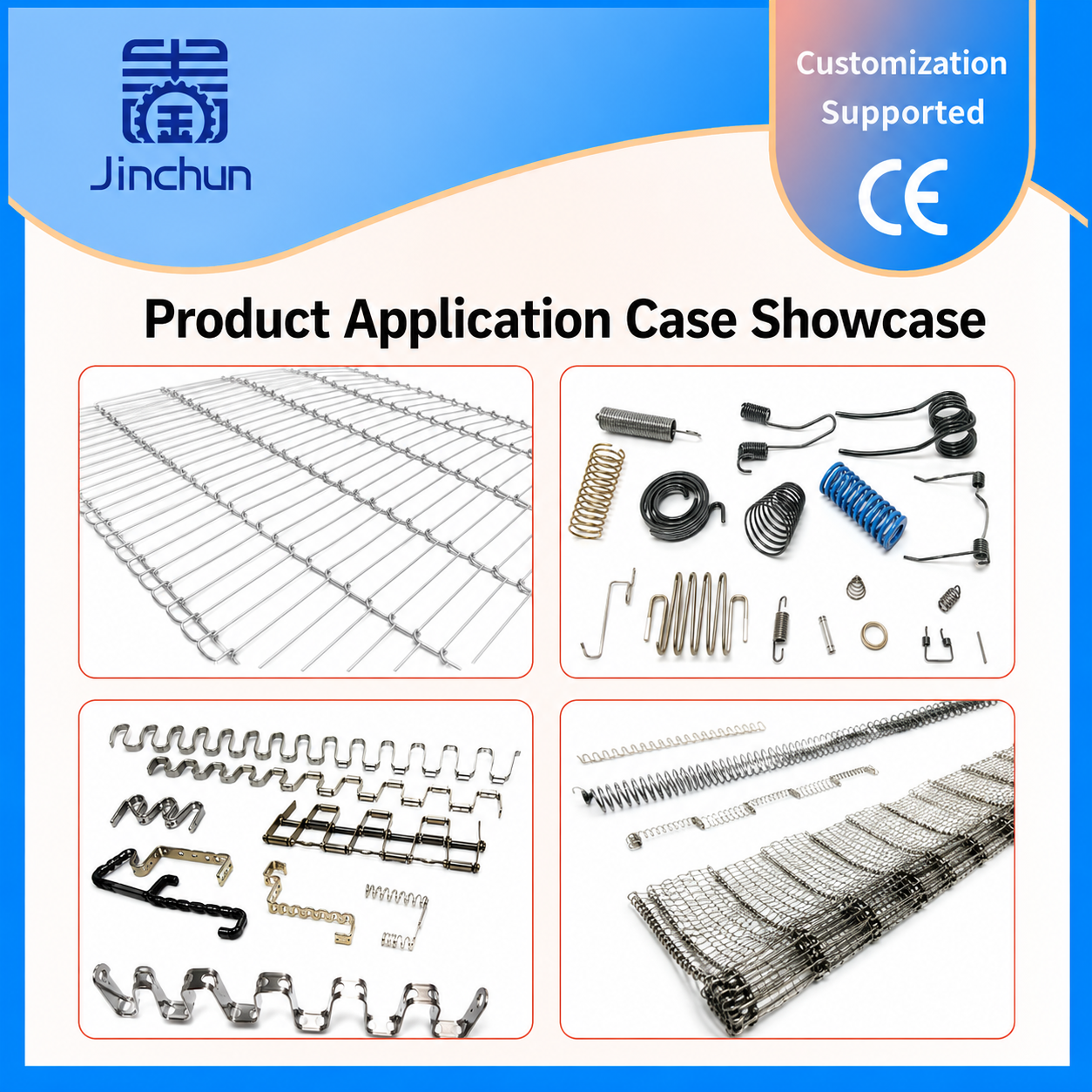

Compatible Products
With suitable tooling and machine configuration, the equipment can be evaluated for:
Product feasibility depends on the wire material, finished geometry, forming sequence, tooling access, and required tolerances.
Typical Applications
Material Compatibility
The machine can be configured for suitable carbon spring steel, stainless steel, alloy spring wire, and other formable metal wires. Compatibility must be confirmed according to the material grade, wire diameter, tensile strength, surface condition, and required bend geometry.
Information Required for Machine Selection
Custom options are available. Contact us to confirm the appropriate model, axis configuration, tooling, and processing solution.
Each controlled axis carries out a defined movement within the production sequence. Coordinating these movements enables the forming tools to create coils, bends, hooks, legs, and end features. The required axis arrangement should be selected according to the actual part geometry.
