| Industry Basic Attributes | WS7-016 | Product Customizable Attributes | |
| Machine Type | Seam Welding Machine | Product Name | Seam Welding Machine |
| Rated Capacity | 16KVA | Rated Frequency (Hz) | 50Hz |
| Type | Welding Head | Maximum Short-Circuit Current | 25KA |
| Applicable Materials |
Iron Stainless Steel Metal Copper Carbon |
Maximum Pressure | 200N |
| Maximum Input Power | 16KW | Stroke of Upper Electrode | 40/80mm |
| Condition | New | Stroke of Lower Electrode | 55mm |
| Voltage | 380V | The Max Welding Length（Deep*Height) | 350mm |
| Place of Origin | China | Dimension Between Arms | 435mm |
| Province | Guangdong | Cooling Water Volume | 2L/min |
| Brand | JinChun | Electrode Size | 14mm |
| Warranty Period | 1 Year | Is customization available | Customizable |
| Weight (KG) | 400KG | ||
| Electric Current | 39.5KA | ||
| Rated Load Duty Cycle | 50% | ||
| Size Specification | 1250*600*1800mm | Logistics Attributes | Volume & Weight (Including Logistics Packaging) |
| Application | Welding Machine | Gross Weight (KG)：Customizable | Length (CM)：Customizable |
| Welding Method | TIG/AC RW/IF RW | Width (CM)：Customizable | Height (CM)：Customizable |

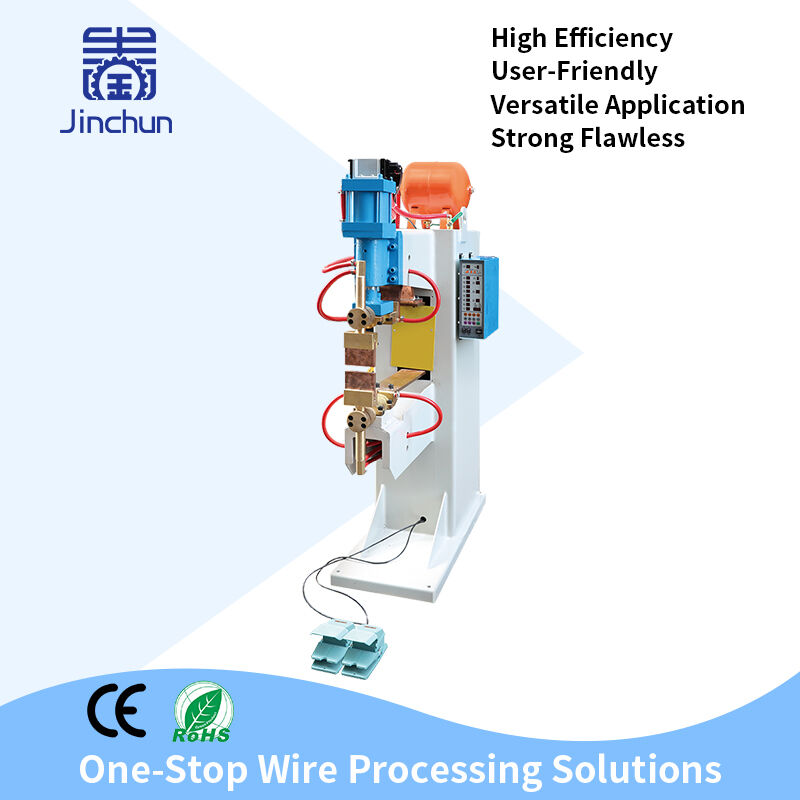

A mesh welder with a rectangular welding head for metal wire or flat bar (iron, stainless steel, aluminum, copper) ≤16mm. Designed for mesh panel products. Welding method selectable based on material. Custom welding and positioning jigs ensure strong, pull-test passing welds. Adjustable current provides smooth, scar-free surfaces. Foot pedal operation with single or continuous welding modes. Output: 20-25 spots/minute. Easy to use, beginners can learn within 5 minutes. Multilingual button/touch control. Ideal for welding mesh products like BBQ grids, pet cages, shopping carts, and shelving. Average machine service life exceeds 10 years, with an annual failure rate of less than 3%. The average after-sales service response time is less than 2 hours. The machine comes with a 1-year warranty, undergoes strict quality control (QC) inspection before shipment, and holds CE certification.
