Automatic XY Welding Systems for Refrigerator Shelf Grids

In the competitive world of appliance manufacturing, the quality and durability of internal components like refrigerator shelf grids are paramount. Achieving consistent, high-strength bonds in complex wire assemblies requires moving beyond manual labor toward high-precision automation. The XY Welder has emerged as the premier choice for companies looking to streamline the production of metal mesh products, offering a perfect blend of speed, versatility, and structural integrity. By utilizing multi-axis control and advanced welding technologies, these systems ensure that every grid is built to last while significantly reducing operational costs.

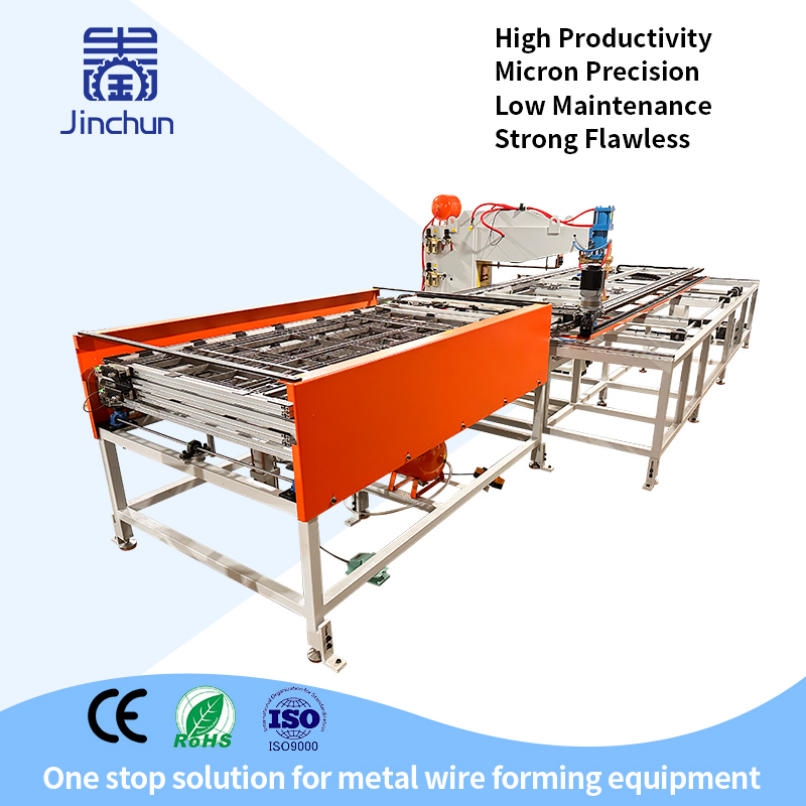

Enhancing Production Efficiency with Multi-Axis Automation

The primary advantage of implementing an XY Welder in a production line is the dramatic boost in efficiency through synchronized operations. These machines feature 2 welding heads and cylinders, allowing for the rapid assembly of complex wire structures. One of the most innovative aspects of this system is the dual-layer, dual-mold design, which allows the machine to weld existing materials while the operator prepares the next batch using a wire vibrating machine. This continuous workflow eliminates downtime, enabling the production of 1 to 3 mesh sheets per minute, or approximately 10 to 12 complex structures per minute.

The movement of the XY axis is driven by high-precision servo motors and synchronous belt transmissions. This setup allows the control system to dictate exact step lengths and travel speeds, moving the product alternately along the X and Y axes to complete welds at every programmed point. Because the machine returns to its origin automatically after a cycle, the need for manual repositioning is removed, effectively utilizing welding time for material preparation and maximizing overall work output.

Advanced Welding Technology for Superior Grid Quality

Quality in wire mesh welding is measured by the strength of the bond and the aesthetic finish of the joint. An automated XY Welder provides specialized welding modes tailored to the material being used. For standard iron wire, AC welding is typically employed, while Medium Frequency (MF) inverter systems are used for stainless steel assemblies. The MF inverter technology is particularly beneficial as it results in virtually no spark splash during the process, ensuring a smooth surface with no unsightly weld scars.

To ensure structural reliability, these machines utilize self-manufactured pressurized cylinders with excellent follow-up performance. The welding pressure is compensated at the exact moment of electrification, which creates a more secure bond and a visually appealing fusion nugget. Every product can be customized with specific welding and positioning molds based on the product drawings, ensuring that the final refrigerator shelf or storage cage can pass rigorous tensile tests. This level of precision ensures that the current size is perfectly adjustable to meet the specific requirements of the hardware industry.

Operational Simplicity and Intelligent Control

A significant barrier to upgrading industrial machinery is often the technical expertise required to operate it. However, the modern XY Welder is designed with a "zero technical threshold," meaning it does not rely on highly skilled labor. The intelligent system features a multilingual interface available via both physical buttons and a responsive touchscreen. This user-friendly design allows new employees to become proficient in operating the equipment within just 30 minutes.

The programmable nature of these systems allows manufacturers to store multiple product specifications in the control unit. Operators can easily set the travel distance of the molds and the alternating intervals according to the specific technological requirements of different mesh sheets. For added safety and flexibility, the equipment can also be initiated via a foot switch, helping to prevent accidents caused by improper operation. This ease of use, combined with the ability to handle various metal wires and flat bars up to 8mm, makes it a versatile tool for diverse sectors ranging from automotive to home furniture.

Durability and Long-Term Value in Industrial Settings

Investing in an automated welding system is a long-term commitment to factory stability. These machines are built with robust construction intended to exceed a 15-year service life under normal industrial conditions. Reliability is a core feature, with an average annual failure rate of less than 3%. Before leaving the factory, every unit undergoes strict quality control (QC) inspections and holds CE certification, ensuring compliance with international safety and performance standards.

Beyond the hardware, the support structure for these machines is designed to minimize production interruptions. Manufacturers provide a 2-year warranty on the equipment and guarantee an average after-sales response time of less than two hours. This ensures that any technical issues are resolved rapidly, maintaining the high uptime required for high-volume production of supermarket shopping carts, pet cages, and protective fences.

Technical Specifications Comparison

When selecting an XY welding system, it is important to understand the capabilities across different configurations. The following table summarizes the key technical attributes of these automated machines.

Frequently Asked Questions (FAQ)

What products are best suited for an XY Welder?

These machines are ideal for any metal mesh or wire assembly, including refrigerator shelf grids, barbecue nets, pet cages (dog, rabbit, or bird cages), supermarket shopping carts, storage cages, and protective fencing.

How does the machine handle different wire materials?

The system allows for selectable welding modes. For example, it uses standard AC welding for iron wires and Medium Frequency (MF) inverter welding for stainless steel to ensure the best bond quality and surface finish.

Is professional training required to operate the welder?

No. The machine is designed for ease of use with no technical threshold. New operators can master the touchscreen and button interface within 30 minutes, allowing factories to reduce their dependence on highly skilled manual welders.

Can the welding molds be customized for specific grid designs?

Yes. Welding and positioning molds can be fully customized according to your product drawings. The CNC system allows for the programming of specific X and Y coordinates to ensure accurate and repetitive welding for unique designs.

What kind of maintenance and support is available?

The machines come with a 2-year warranty and are built to last over a decade. In the event of a problem, the after-sales response time is typically less than two hours, ensuring minimal disruption to your production schedule.
