Product Specification: Gantry welding machine
| Industry basic attributes | Product custom attributes | ||
| Types of machines | Gantry Welding Machine | Product Name | Gantry Welding Machine |
| Rated capacity | 125KVA | Rated Frequency | 50Hz |
| Type | Welding Head | Number of Pressurizing Mechanisms | 2pcs |
| Material |
Iron Stainless Steel Metal Copper Carbon |
Welding Process | Row Welding |
| Maximum input power | 125KW | Working Air Pressure | 0.5-0.7MPa |
| Status | New | Cooling Water Flow | 30L/min |
| Voltage | 380V | Working Height | 800-900mm |
| Weight (KG | 1500KG | Pressurization Method | Pneumatic |
| Current | 38.5KA | Electrode Stroke | 60-80mm |
| Rated load duration | 50% | Fixture Travel Speed | 1800mm/s |
| Size specification | 2240*750*1900mm | Welding form | TIG/AC RW/IF RW |
| Logistics attribute | Volume and weight (including logistics packaging) | ||
| Gross weight (KG) : 1500kgs | Length (CM) : 2150 | Width (CM) : 2000 | Height (CM) : 1050 |

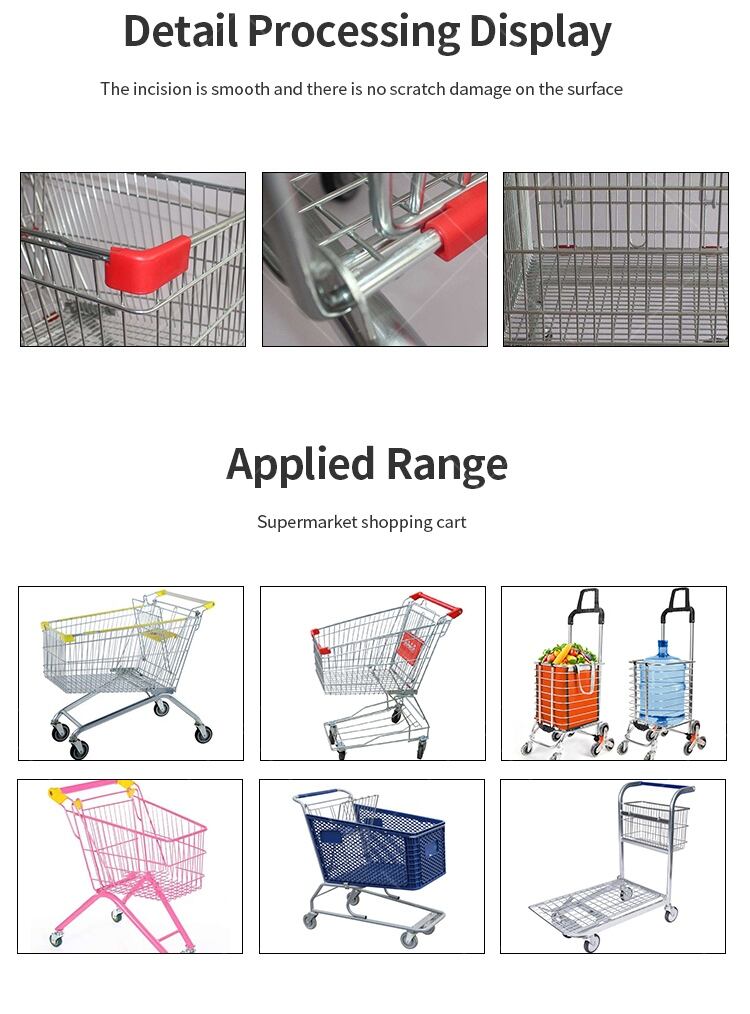

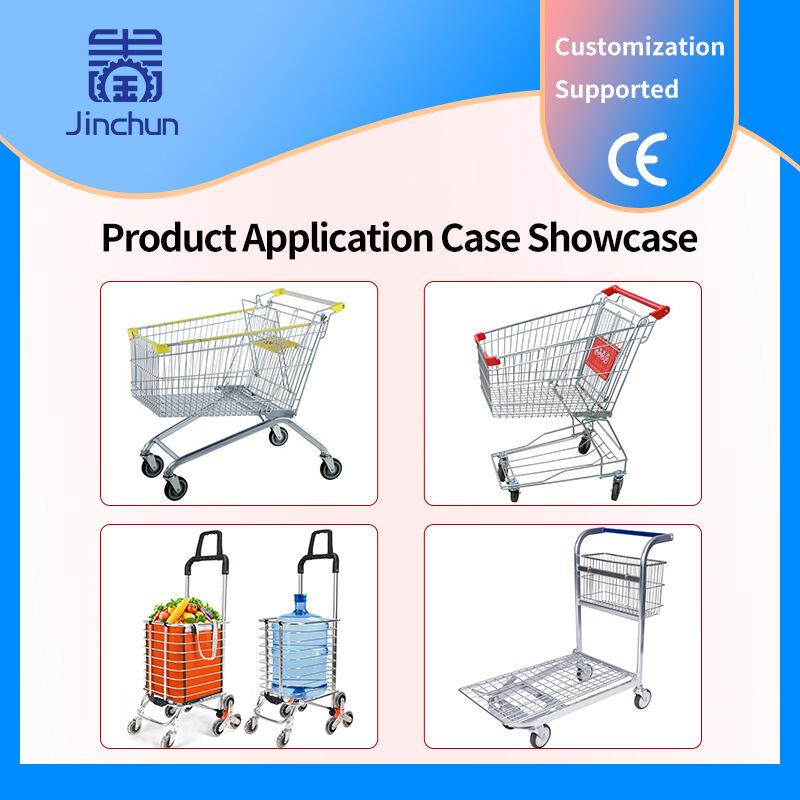

This automatic gantry-type welded mesh machine is equipped with 2–16 welding heads and cylinders, delivering high-speed production of 1–5 mesh panels per minute. It supports automated loading/unloading for continuous unmanned operation and processes round/flat wire up to 16mm in diameter. Operators can select welding methods (AC/MF) based on material type. Custom jigs and adjustable current ensure strong, pull-test-passing welds with smooth surfaces. With intuitive multilingual controls, the system can be mastered within 30 minutes. Ideal for high-volume mesh products including BBQ grids, pet cages, shopping carts, and storage racks, the machine offers a service life exceeding 10 years, under 3% annual failure rate, under 2-hour after-sales response, 1-year warranty, pre-shipment QC, and CE certification.
