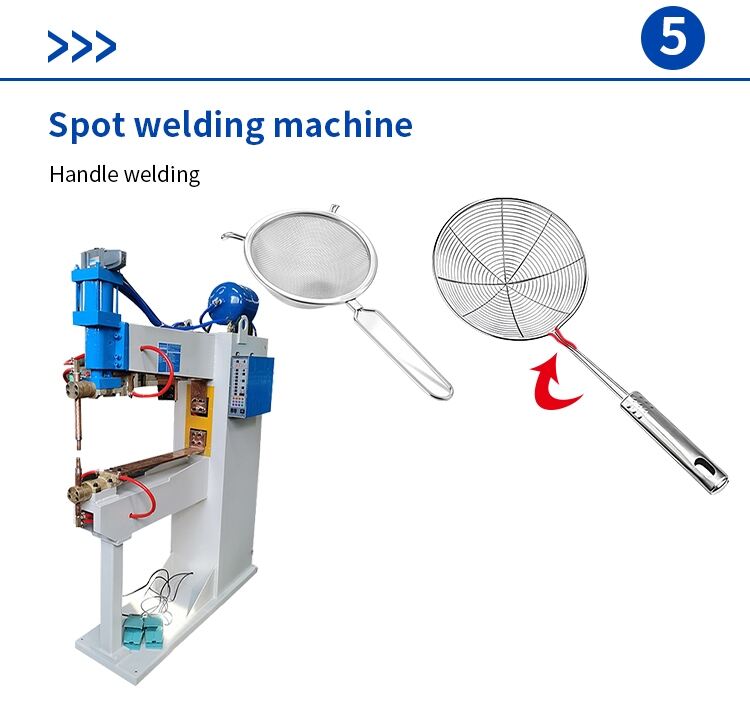

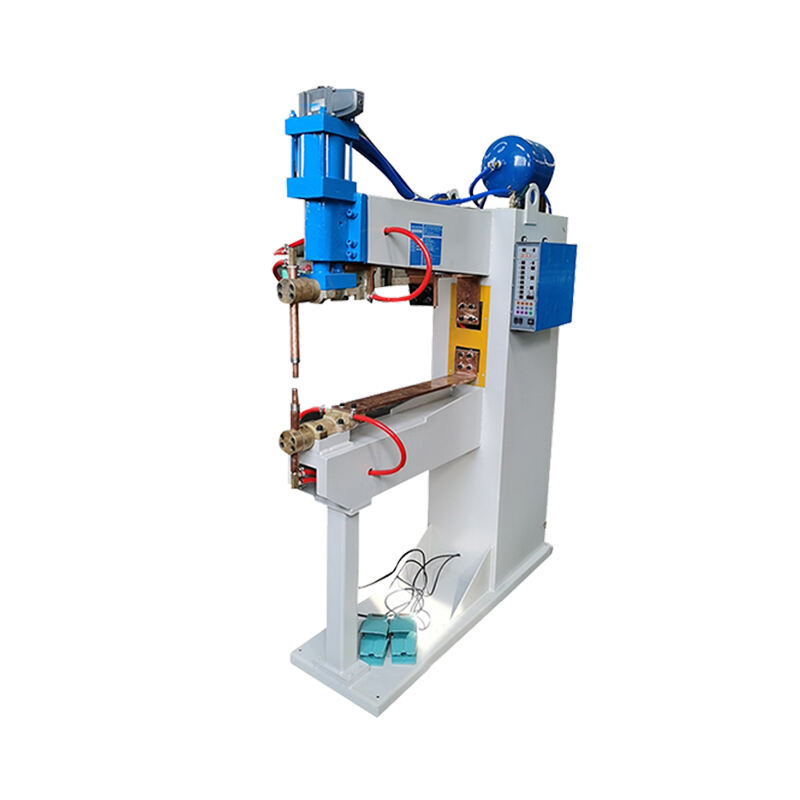

Spot welding machine with a circular welding head is designed for versatile metal processing. It handles metal wire or flat bar (iron, stainless steel, aluminum, copper) ≤16mm, ideal for Handle welding, Colander production line, and joining hardware components. With 30+ years of professional experience, we not only offer this high-performance spot welder but also provide a complete production line solution for manufacturing spoons.
This machine delivers 20-25 spots/minute. You can select welding methods (e.g., AC for iron, Medium Frequency for stainless steel) based on materials. Welding and positioning jigs are customizable via product drawings, ensuring strong welds that pass pull tests. It features adjustable current for smooth, scar-free surfaces, and foot pedal operation lets beginners master it in 5 minutes. Multilingual button/touch control enhances usability.
Backed by 20+ After-Sales Service Engineers, it boasts over 10 years of average service life, <3% annual failure rate, and <2 hours average after-sales response time. It includes a 1-year warranty, undergoes strict pre-shipment QC inspection, and holds CE certification.
| Industry Basic Attributes | WS6-016 | Product Custom Attributes | |
| Rated Capacity | 16KVA | Product Name | Spot Welding Machine |
| Maximum Welding Thickness | 32mm | Rated Frequency (Hz) | 50Hz |
| Voltage | 380V | Maximum Short-Circuit Current | 25KA |
| Power (kW) | 16KW | Maximum Pressure | 200N |
| Status | New | Stroke of Upper Electrode | 40/80mm |
| Origin | China | Stroke of Lower Electrode | 55mm |
| Province | Guangdong | The Max Welding Length（Deep*Height) | 350mm |
| Brand | JinChun | Dimension Between Arms | 435mm |
| Rated Load Duration | 50% | Cooling Water Volume | 2L/min |
| Size Specification | 1250*600*1800mm | Electrode Size | 14mm |
| Application | Welding Machine | Is customization available | Customizable |
| Warranty Period | 1 Year | ||
| Weight (KG) | 400KG | ||
| Logistics Attributes | Volume and Weight (including logistics packaging) | ||
| Gross Weight (KG): Customizable | Length (CM): Customizable | Width (CM): Customizable | Height (CM): Customizable |
