| Industry basic attributes | 25T | Product custom attributes | |

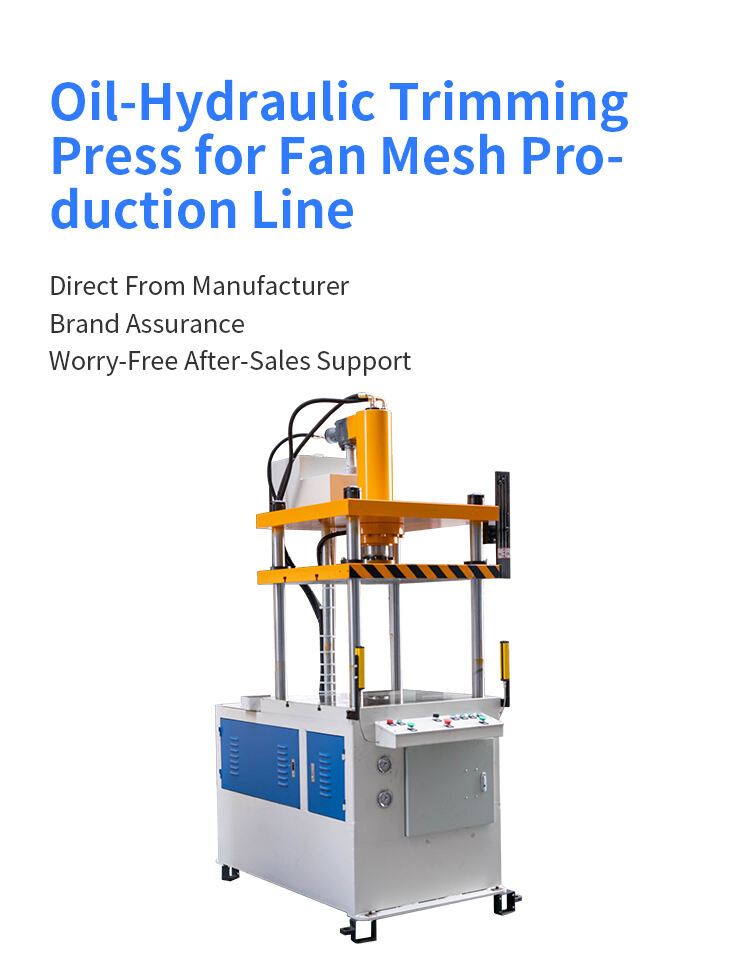

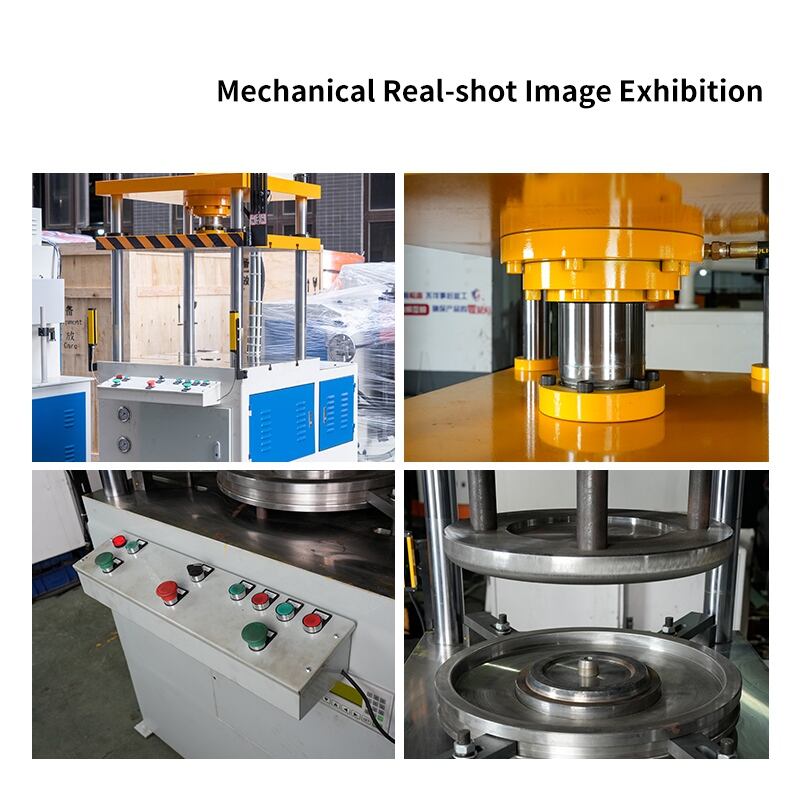

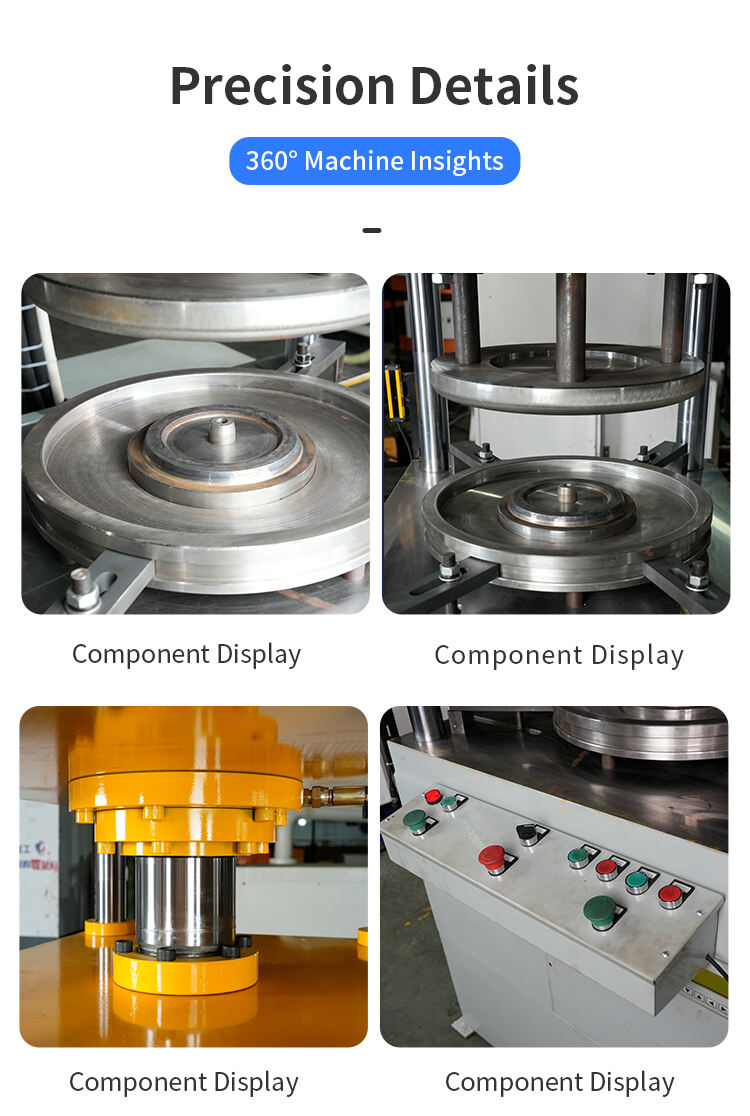

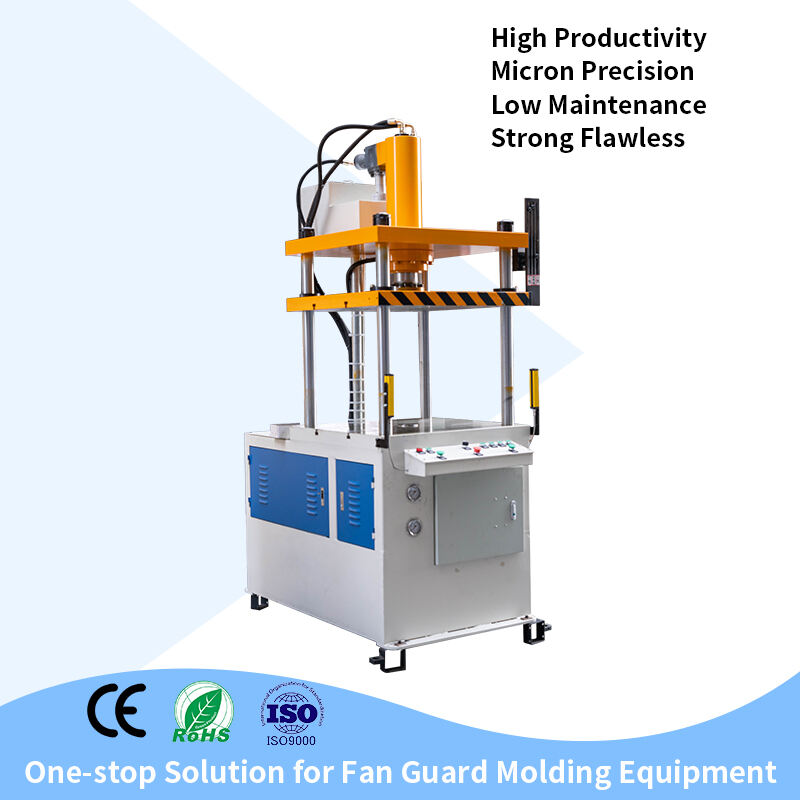

| Machine type | Four-column Three-beam Hydraulic Press | Product Name | 25T Hydraulic Press Machine |
| System | Normal | Current | 30-40A |
| Voltage | 380V | Platform square | 850*850mm |
| Weight (tons) | 1.5T | Speed | 800-900pcs |
| Motor power (kilowatts | 7.5KW | Protection | Infrared ray device |
| Warranty period | 1 Year | Pressure | 25T |
| Core component | Motor,Pump,Gear,Pressure vessel | Oil Pump | PV2R1-28 |
| Slider stroke (mm | 350 | Upper cylinder bore diameter | 140mm |
| Top force (KN | 55 | Upper cylinder pressing stroke | 350mm |
| Return force (KN | 25 | Lower ejector cylinder bore diameter | 80mm |
| Origin | China | Hydraulic pump motor power | 7.5KW |
| Province | Guangdong | Certification | CE |
| Brand | JinChun | Type | Manual Bending Machine |

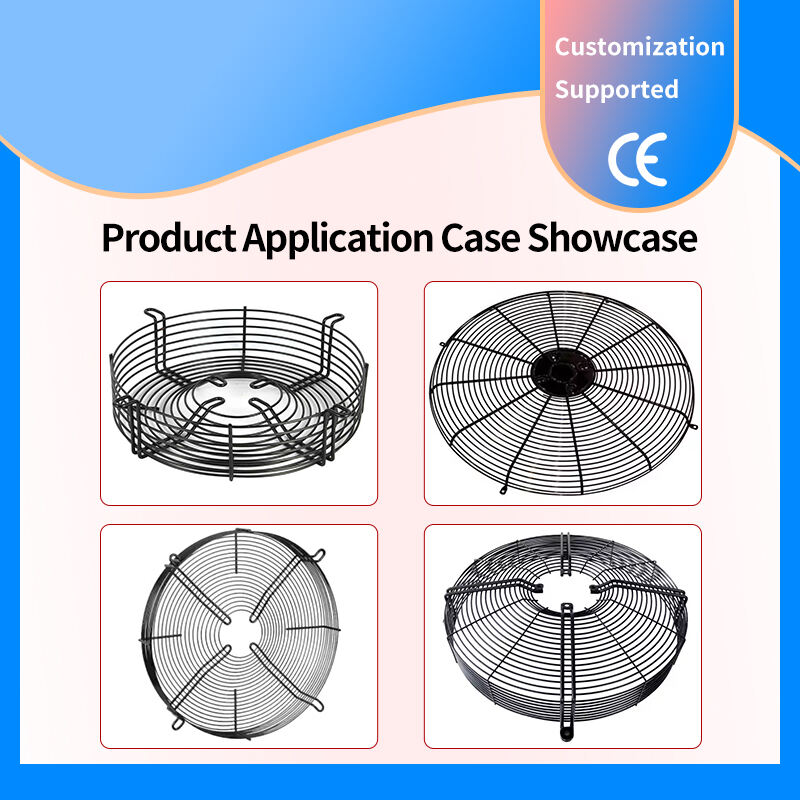

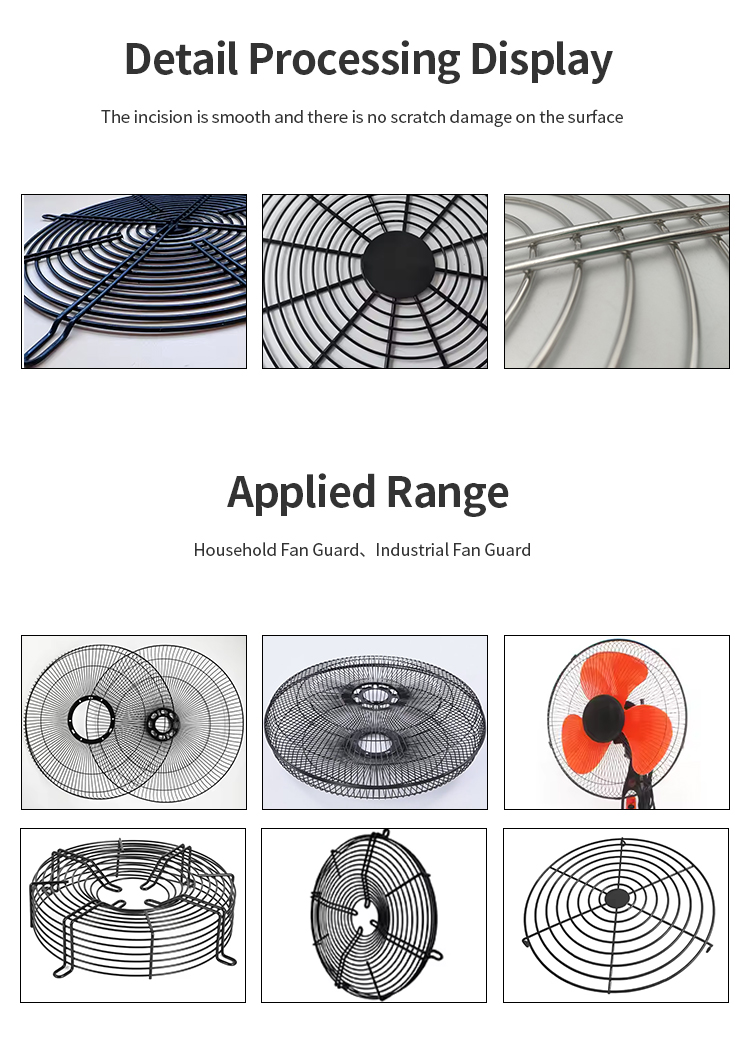

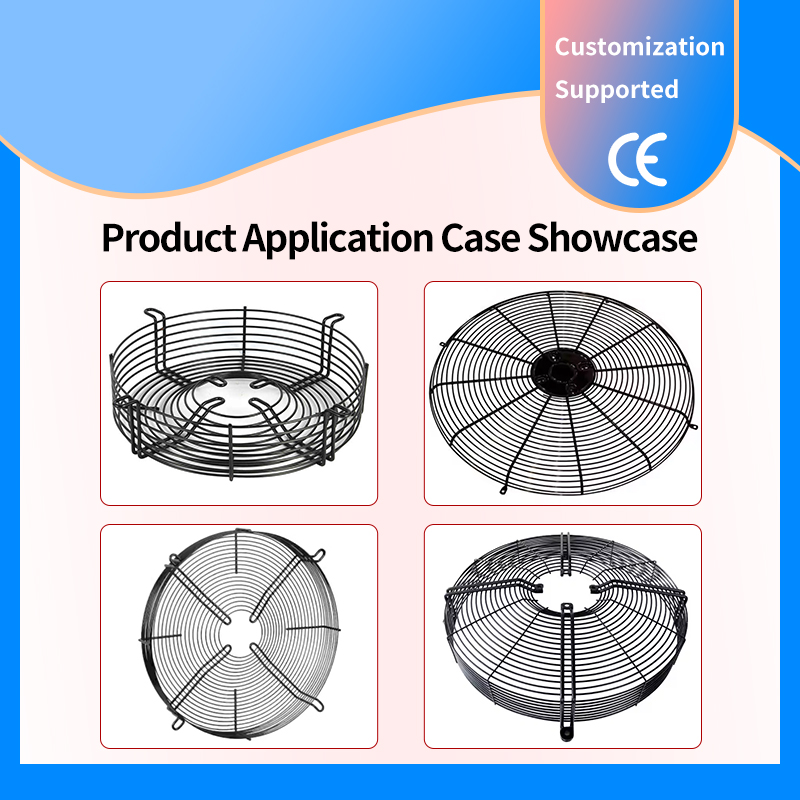

| Dimensions (length * width * height) | 1600*1000*2500mm | Suitable for | Fan Guard/Bird Cage/Super Market Cart |
| Model | 25T | Transport Package | Sea Worthy Wooden Package or PVC Film for FCL |
| Core selling point | Multifunctional、Easy to Operate、High Productivity | ||
| Mechanical test report | Provided | ||
| Video factory inspection | Provided | ||
| Logistics attribute | Volume and weight (including logistics packaging) | ||
| Gross weight (KG）:Customizable | Length (CM）:Customizable | Width (CM）:Customizable | Height (CM）:Customizable |
Our Hydraulic Press is a rugged wire-forming machine designed for pressing and shaping heavy-duty wire, suitable for wire diameters up to 16mm. While primarily designed to process iron and stainless steel wire, it can also handle aluminum and copper, accommodating a wide range of metal wire processing needs. It supports both round and flat iron wire, eliminating the need for multiple machines for different wire shapes. Customized features such as stamping, punching, and welding are available to meet specific production needs. Production speeds range from 10 to 30 presses per minute (depending on process complexity), achieving a balance between precision and efficiency. The machine is equipped with universal dies, eliminating the need to change dies for standard pressing tasks, streamlining operation. Backed by a one-year warranty, the machine boasts a lifespan of over 10 years with proper maintenance, ensuring long-term reliable operation. The multilingual intelligent system supports both keypad and touchscreen operation, allowing new operators to master the essentials within an hour. The entire series of equipment is equipped with CE certification and is widely used in the automotive and motorcycle parts industry (wire component pressing), animal husbandry industry (veterinary cage wire pressing), mesh cover industry (wire mesh frame pressing), supermarket rack industry (shelf wire pressing), furniture industry (wire structure pressing) and other fields.
