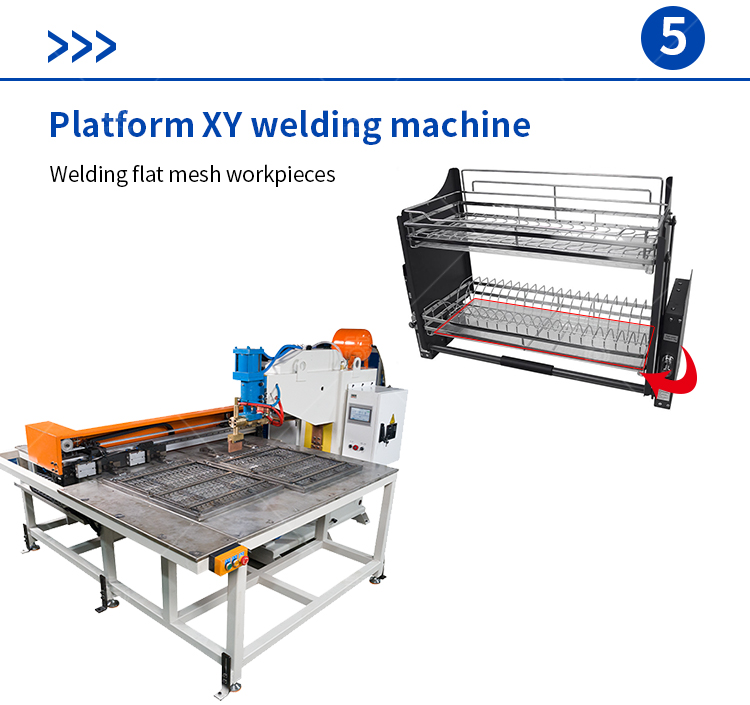

Product Specification: XY welding machine
| Industry basic attributes | Double-mode double-layer XY welding machine | Product custom attributes |
|
| Types of machines | XY-Axis Welding Machine | Product Name | XY-Axis Welding Machine |
| Rated capacity | 150KVA | Control Screen | Touch Screen |
| Type | Welding Head | The Max Width Welding Size | 800mm |
| Material |
Iron Stainless Steel Metal Copper Carbon |
The Max Lenght Welding Size | 1250mm |
| Maximum input power | 150KW | Working Aire Pressure | 0.5~0.7MPa |
| Status | New | Working Height | 600-800mm |
| Voltage | 380V | Welding Process | Row Welding |
| Origin | China | Pressurization Mode | Pneumatic |
| Province | Guangdong | X-axis Servo Motor Power | 0.75KW,2000R |
| Brand | JinChun | Y-axis Servo Motor Power | 1.5KW,3000R |
| Warranty period | 1 Year | Is customization available | Customizable |
| Weight (KG | 800KG | ||
| Current | 38.5KA | ||
| Rated load duration | 50% | ||
| Size specification | 2800mm*2200mm*1750mm | Logistics attribute | Volume and weight (including logistics packaging) |
| Purpose | Welding Machine | Gross weight (KG) : Customizable | Length (CM) : Customizable |
| Welding form | TIG/AC RW/IF RW | Width (CM) : Customizable | Height (CM) : Customizable |
This XY-Axis Welding Machine, equipped with 2-10 welding heads and cylinders, is ideal for welding mesh. It can weld 1-3 meshes per minute. Operators use a vibrating wire feeder to place material while welding, reducing reliance on skill. It can handle wire and flat bar ≤ 16 mm. Selectable welding methods are available. Customized fixtures ensure strong welds, smooth surfaces, and compliance with testing requirements. Operators can learn to operate it in 30 minutes. Multi-language control is available. It is ideal for mesh products (barbecues, pet cages, carts, racks). It has an average service life of over 10 years and an annual failure rate of <3%. Average after-sales response time is <2 hours. It comes with a 1-year warranty. Strict pre-shipment quality control is implemented. CE certified.
