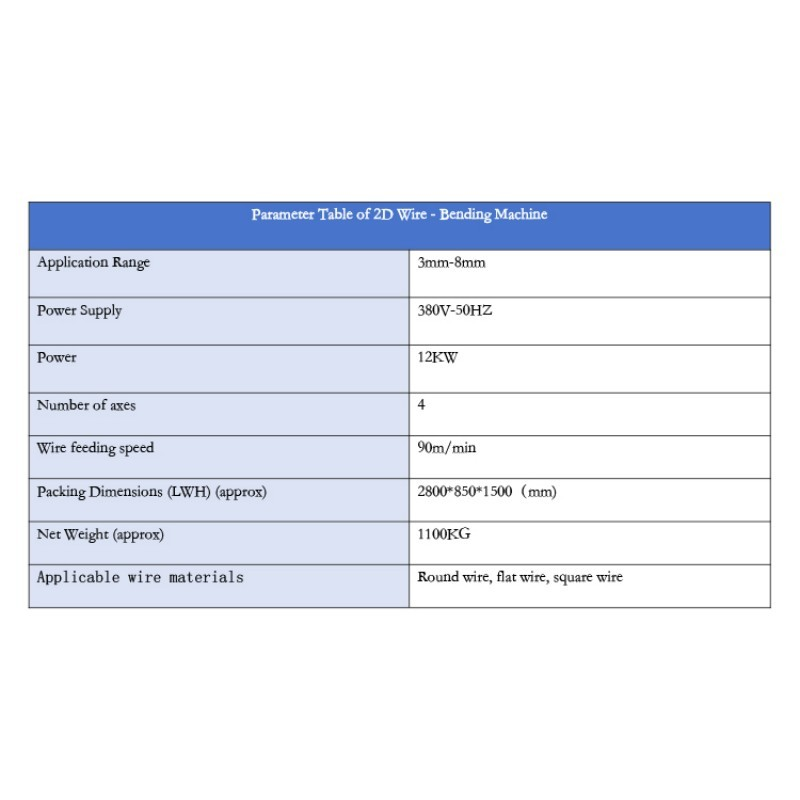

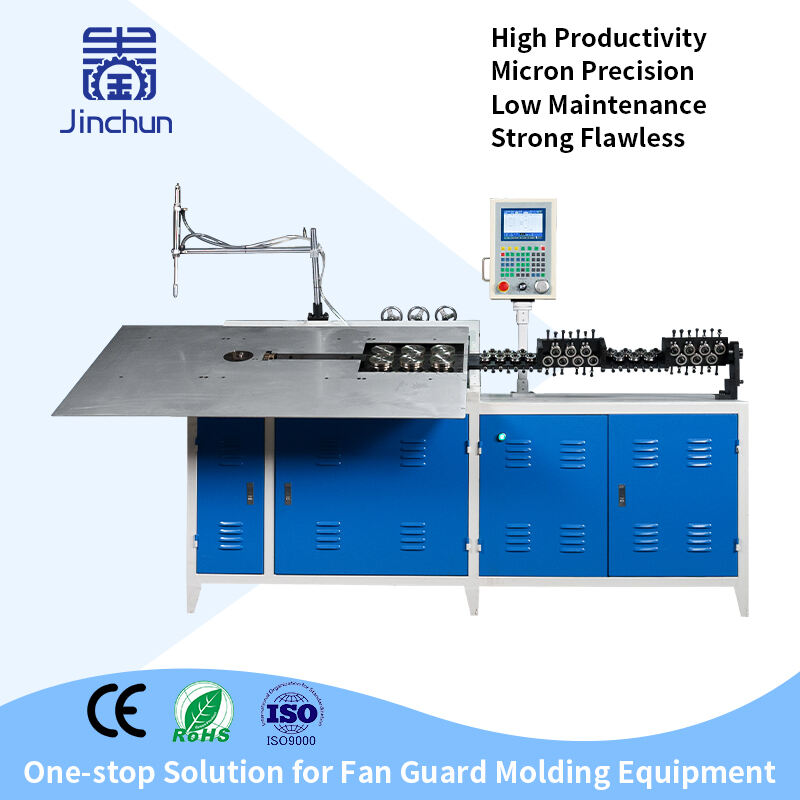

Product specification: 4 axes, 3-8mm
| Industry basic attributes | Product custom attributes | ||
| Machine type | CNC 2D Wire Bending Machine | Product Name | CNC 2D Wire Bending Machine |
| Core component | PLC、Engine、Motor | Number of Axes | 4 Axis |
| Processable material | Iron、Stainless Steel、Aluminum | Suitable Wire Material | Round,Flat,Square,All Kinds of Metal Wires |
| Weight (KG | 880KG | Suitable For Wire Diameter | 3-8mm |
| Warranty period | 1 Year | Bending/Wire Feeding Precision | ±0.5mm |
| Origin | China | Production Speed | 12-15 Pcs/Min(200*200mm Square) |
| Province | Guangdong | Wire Feeding Servo Motor Power | 4.0KW |
| Video factory inspection | Provided | Bending Servo Motor Power | 1.8KW |
| Mechanical test report | Provided | Cutter Servo Motor Power | 1.0KW |
| Brand | JinChun | Servo Lifting Motor Power | 1.0KW |
| Degree of automation | Automatic、Semi-automatic | Logistics attribute | Volume and weight (including logistics packaging) |
| Additional functions | Cut To Length | Gross weight (KG) : 930KG | Length (CM) : 245 |
| Core selling point | Multifunctional、Automatic、Competitive Price | Width (CM) : 95 | Height (CM):183 |

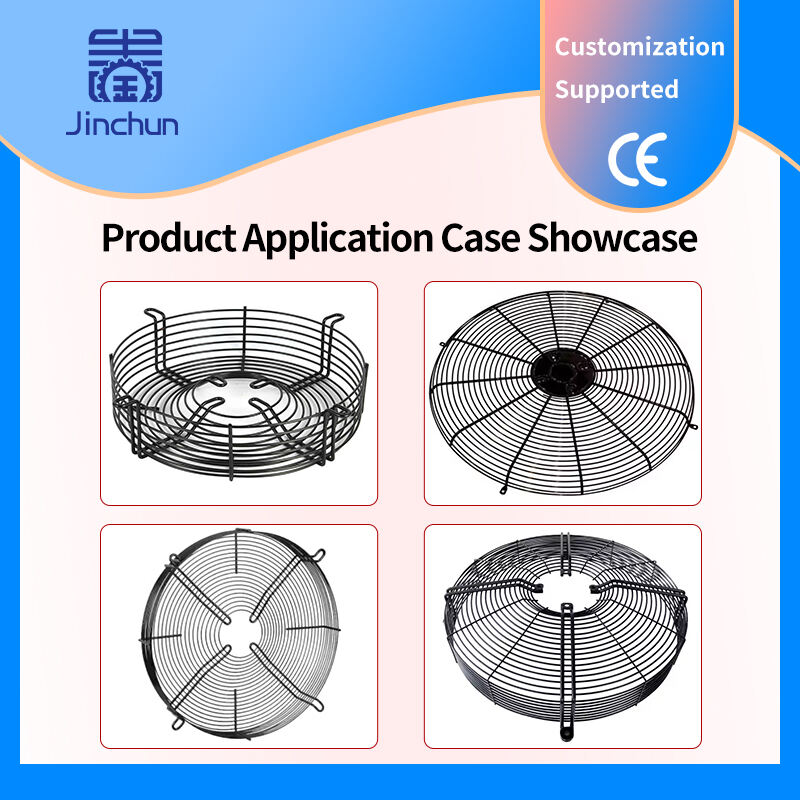

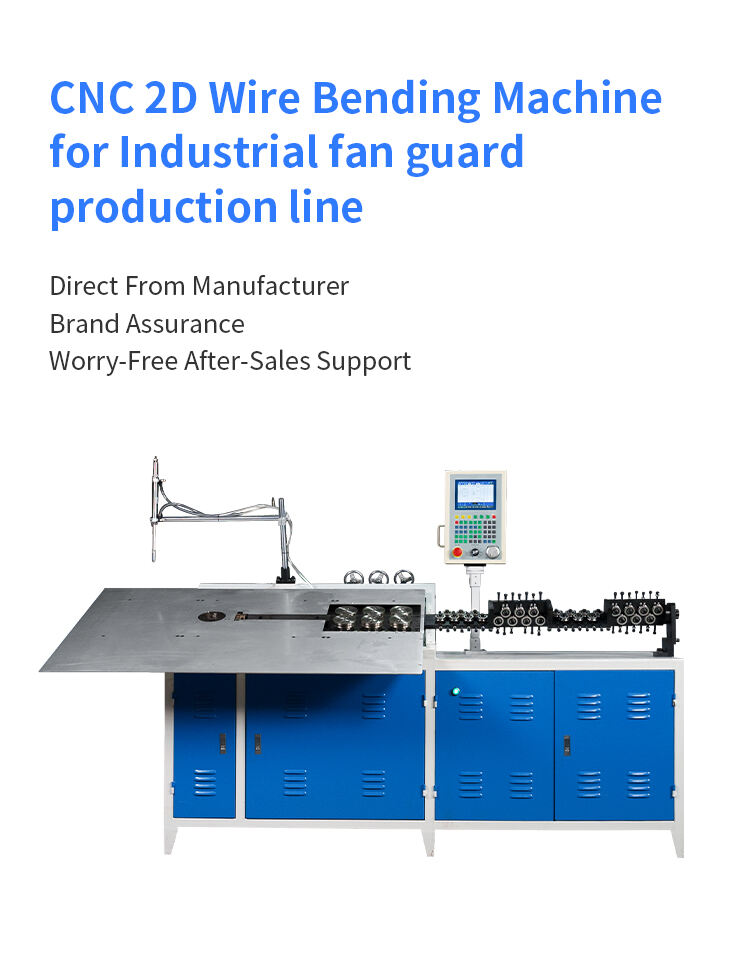

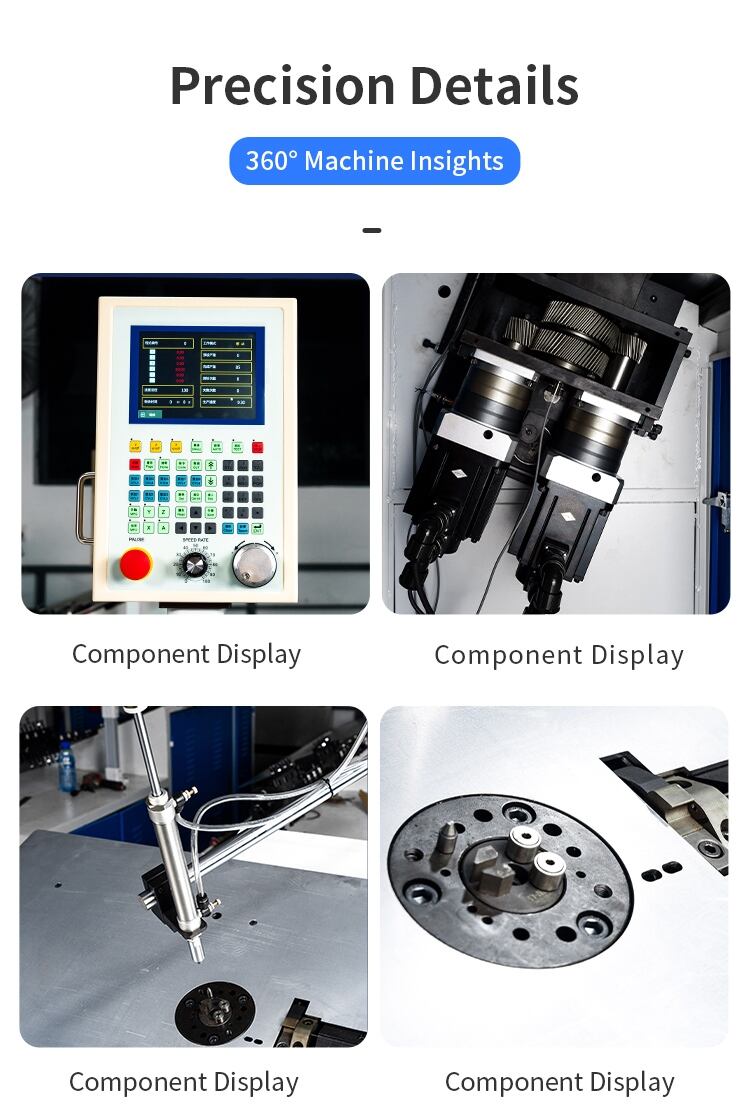

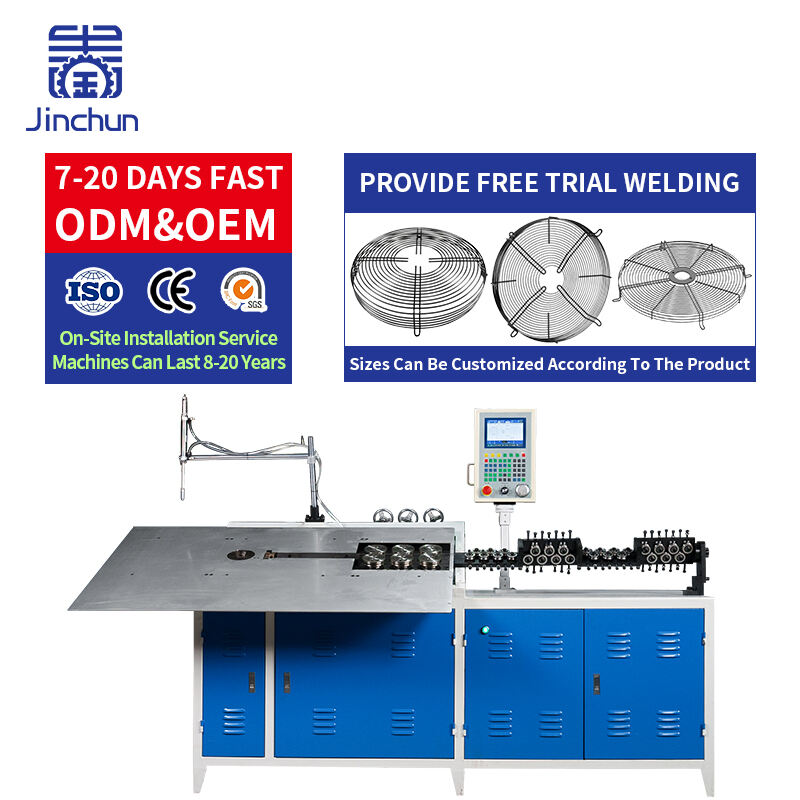

This CNC 2D Wire Bending Machine is suitable for round or flat bar materials (iron, stainless steel, aluminum, copper) with diameters ranging from 1 to 16 mm; it only requires changing dies. It can form 15 to 45 2D parts per minute with an accuracy of up to 0.02 mm. Universal dies minimize downtime for changeovers. Optional custom features such as welding, punching, or embossing are available. The machine features a multilingual intelligent system with both keypad and touchscreen, allowing beginners to learn how to use it in under an hour. Programs can be imported directly from CAD, and the machine can store up to 10,000 programs. It is suitable for automotive parts, hardware, furniture, shelving, baking, and livestock equipment. The average machine lifespan exceeds 10 years, with an annual failure rate of less than 3%. The average after-sales service response time is less than 2 hours. The machine is backed by a one-year warranty, undergoes rigorous quality control (QC) inspections before shipment, and is CE certified.
