A dedicated multi-axis forming solution for producing consistent helical wire inserts used to reinforce and repair internal threads.

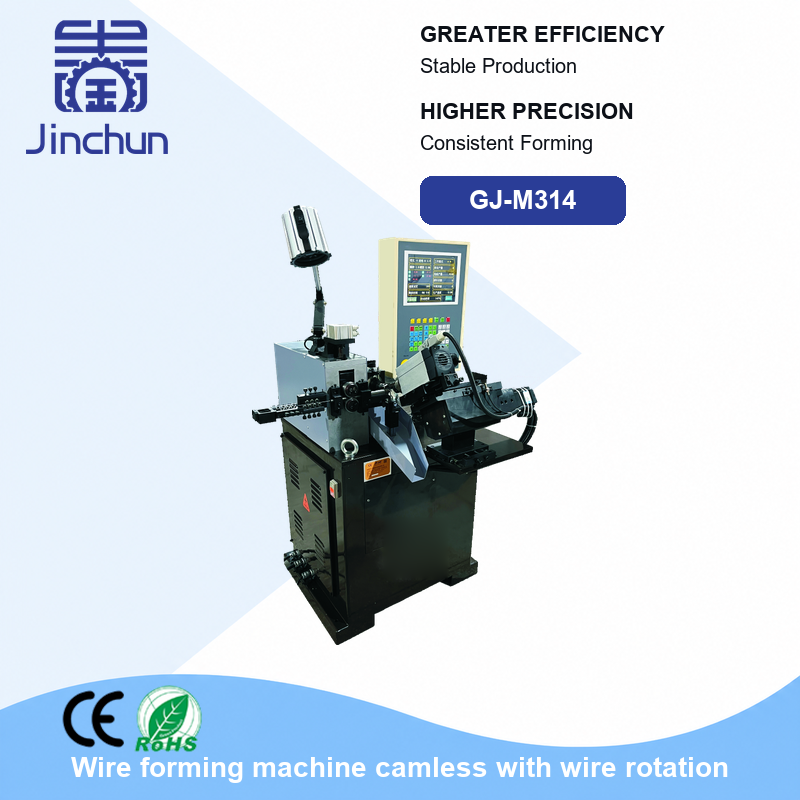

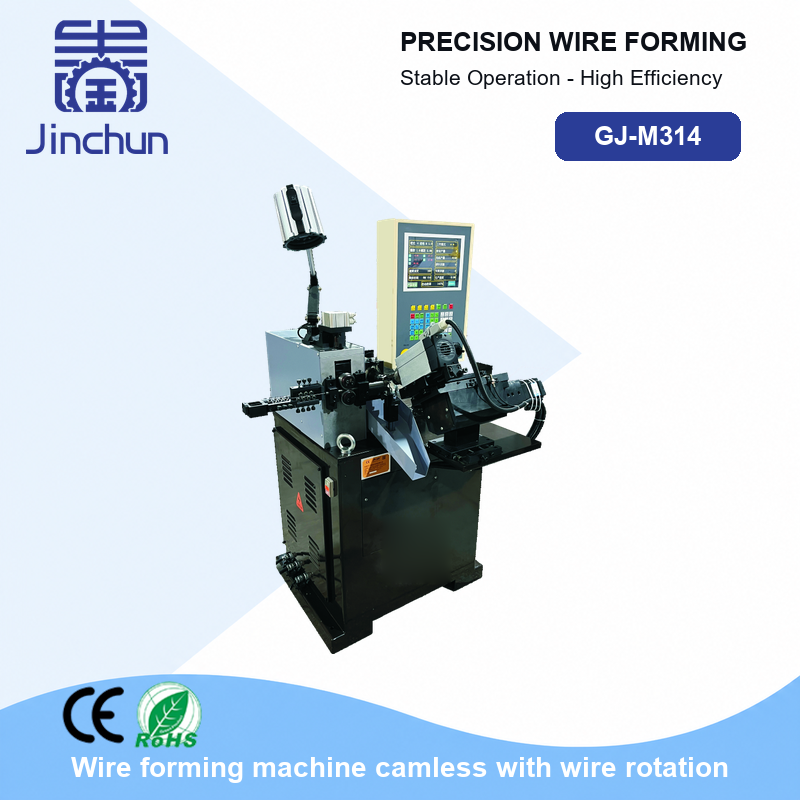

The 6 Axis CNC Thread Insert Making Machine is designed for manufacturing wire thread inserts, also known as helicoil inserts or screw sleeves. The published configuration is intended for M3–M14 tangless inserts.

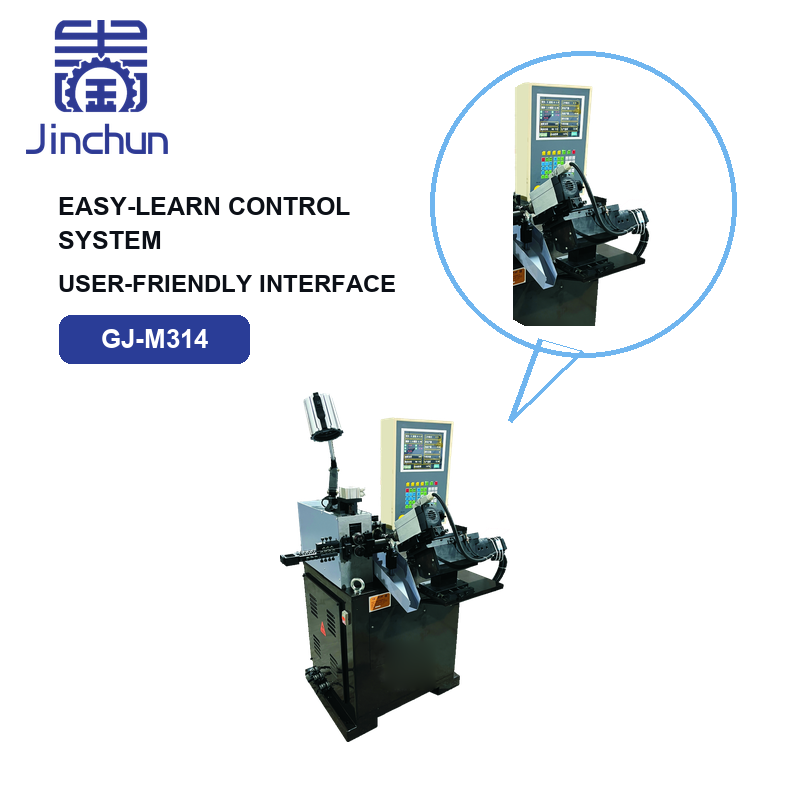

The six-axis CNC system coordinates wire feeding, helical forming, end processing, and cutting according to the insert program. Controlled production helps maintain the coil diameter, pitch, insert length, and end geometry required for subsequent installation.
Core Features
The individual axis functions, compatible wire profile, forming speed, end-processing method, and achievable tolerances should be confirmed for the selected configuration.

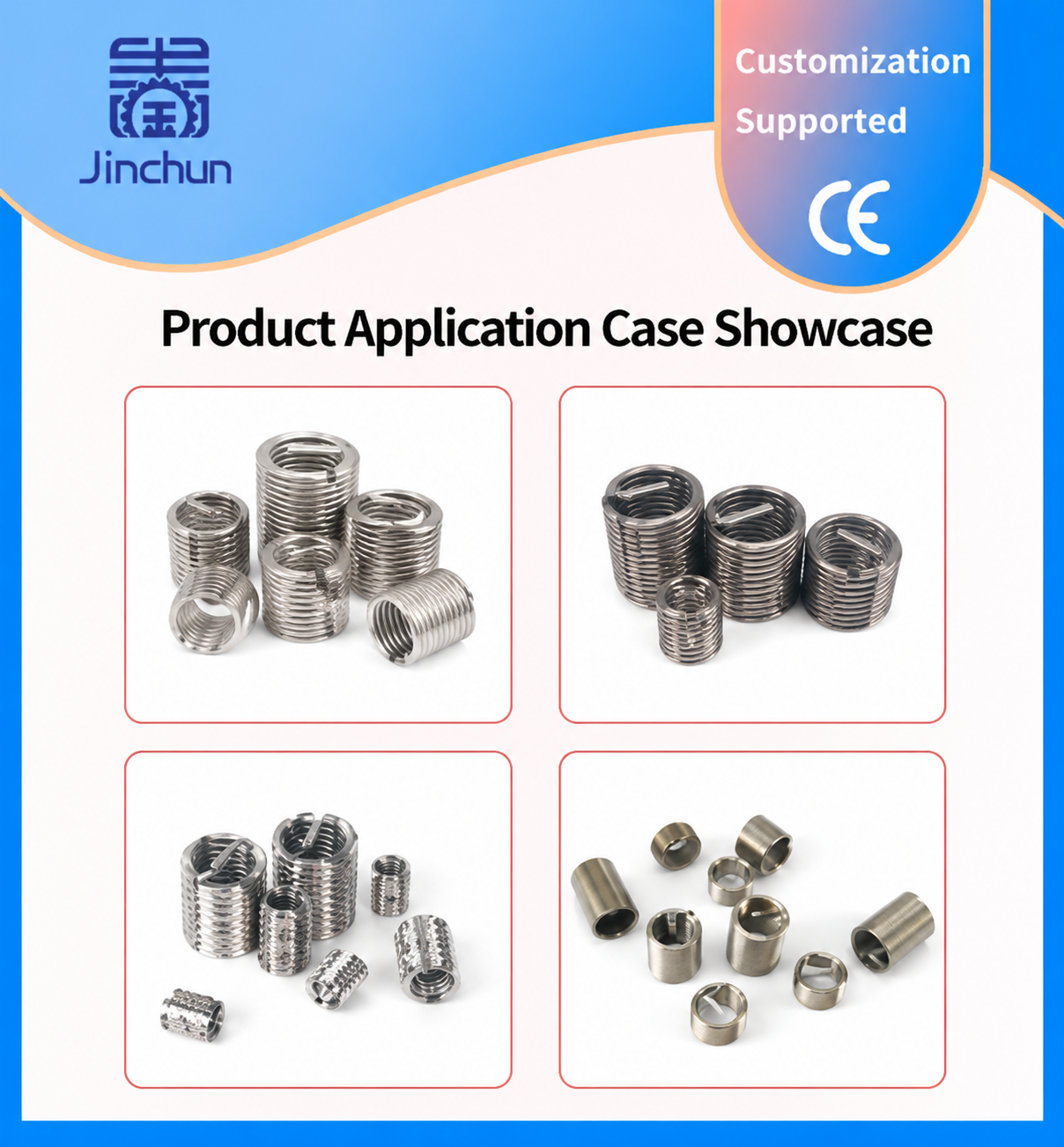

Finished Product Applications
Wire thread inserts can be used for:
Material Compatibility
The machine should be matched to the profiled wire used for the finished insert. Compatibility depends on:
Information Required for Machine Selection
Custom options are available. Contact us to confirm the processing range, tooling, and complete production solution.
A wire thread insert is formed from profiled wire into a precisely controlled helix. When installed in a prepared tapped hole, it creates a durable internal thread. Consistent coil geometry is important for installation, thread engagement, and fit within the receiving component.
