Coordinated multi-axis control supports efficient setup and repeatable production of compression springs with varied diameters, pitches, and profiles.

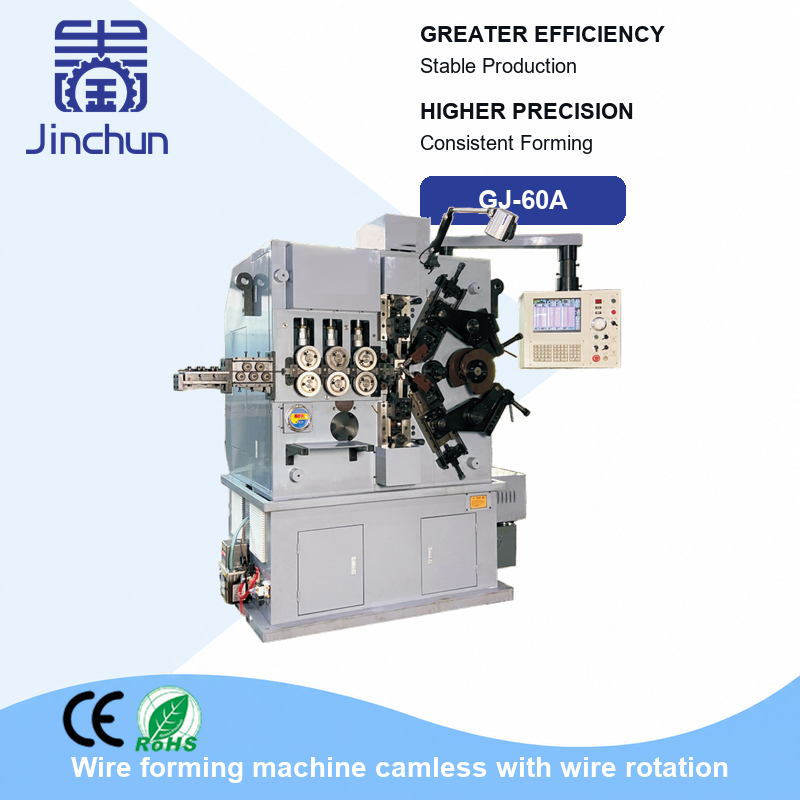

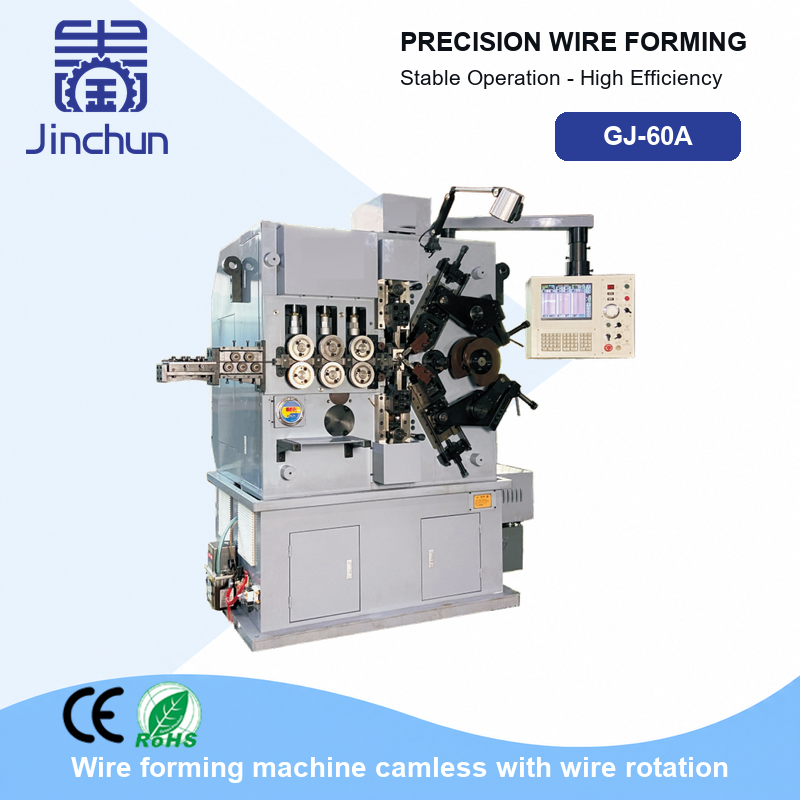

The 5 Axis CNC Compression Spring Machine is designed for producing compression springs used in automotive components, appliances, electrical equipment, valves, pumps, and industrial assemblies.
Its five-axis CNC system coordinates the configured wire-feeding and spring-forming movements according to the production program. Independent parameter adjustment provides the flexibility required for different spring geometries while supporting consistent batch production.
Core Features
The exact function assigned to each axis, processing range, production speed, and controller capacity should be confirmed for the selected model.

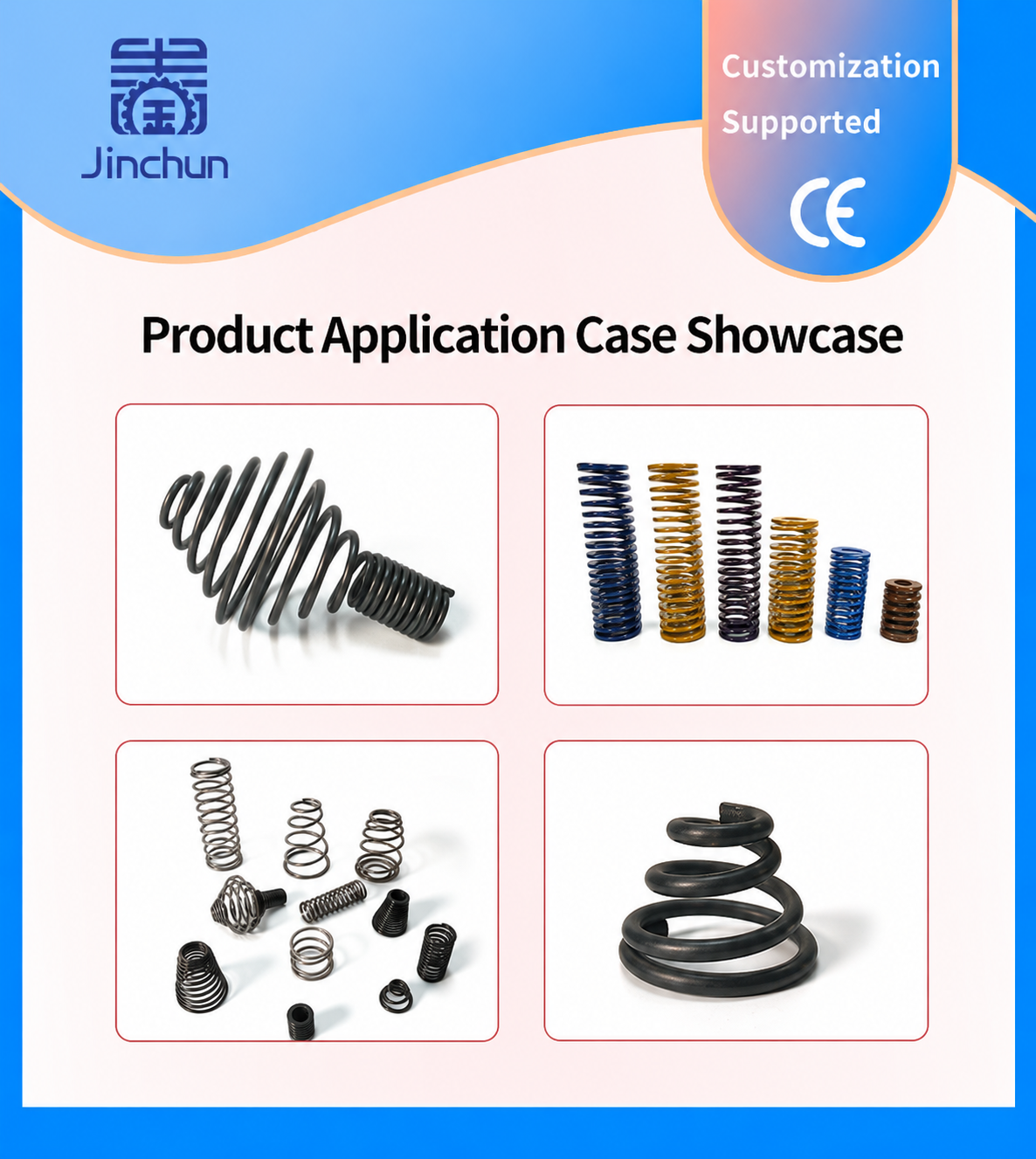

Compatible Spring Types
Depending on the tooling and machine configuration, the equipment can be evaluated for:
Special end forms or non-compression spring products may require additional tooling or separate processing.
Typical Applications
Material Compatibility
The machine can be configured for suitable carbon spring steel, stainless steel, alloy spring wire, and other formable metal wires. Compatibility depends on the material grade, wire diameter, tensile strength, surface condition, and finished spring geometry.
Information Required for Machine Selection
Custom options are available. Contact us to confirm the appropriate machine model, tooling, axis functions, and production solution.

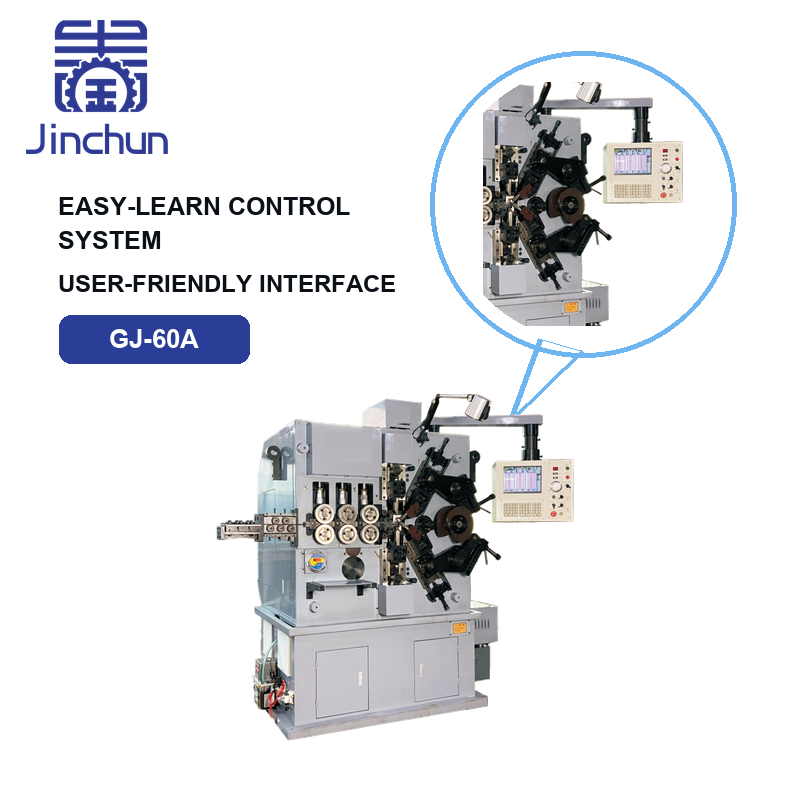

The five-axis control system coordinates the movements required by the selected coiling process. Each axis performs its configured function within the production sequence, allowing the machine to manage compatible spring dimensions and pitch patterns. Exact axis assignments depend on the machine model.
