A programmable four-axis coiling solution for repeatable production of cylindrical, tapered, and variable-pitch spring designs.

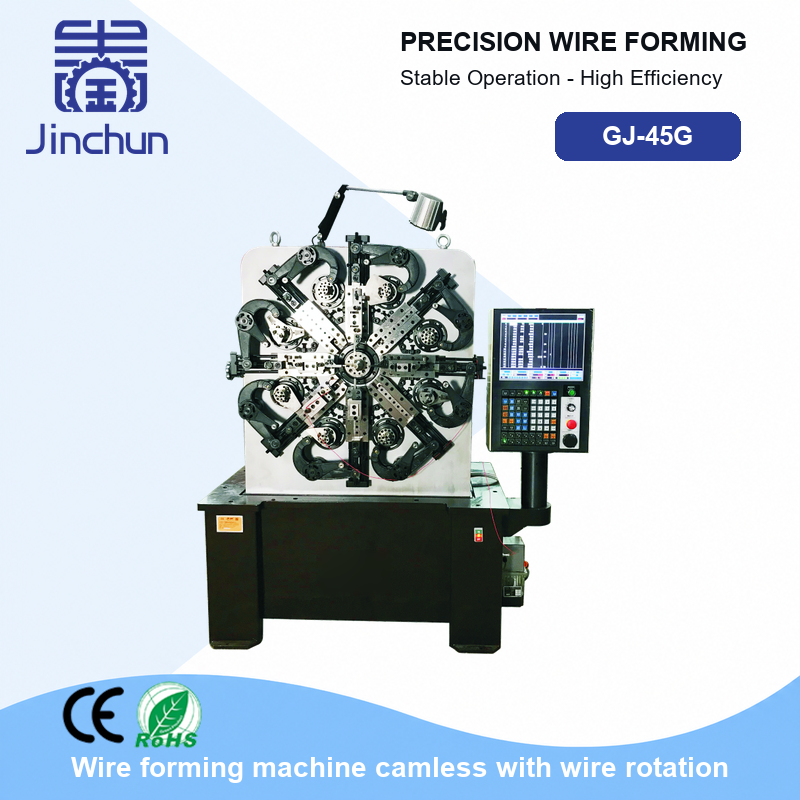

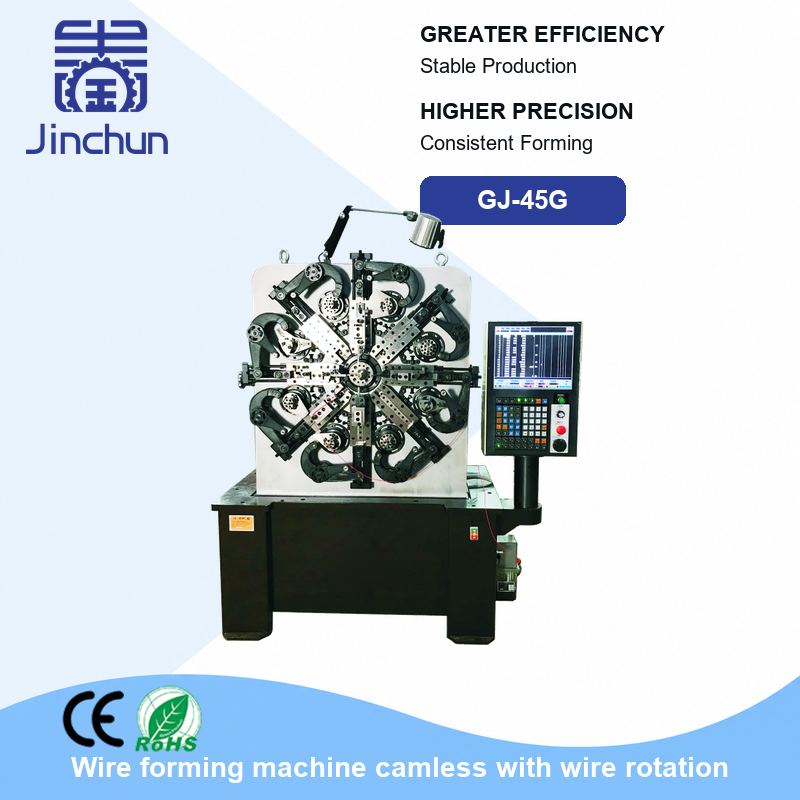

The 4 Axis CNC Versatile Spring Coiling Machine is designed for manufacturing compression springs in a variety of compatible geometries. Its four-axis CNC system coordinates the required wire-feeding and forming movements according to the programmed production sequence.
Digital parameter adjustment makes the machine suitable for repeat orders, varied spring specifications, and production environments requiring efficient product changeovers. The appropriate tooling and setup are selected according to the wire properties and finished spring drawing.
Core Features
The specific function assigned to each axis, controller capacity, processing range, and available options should be confirmed for the selected model.

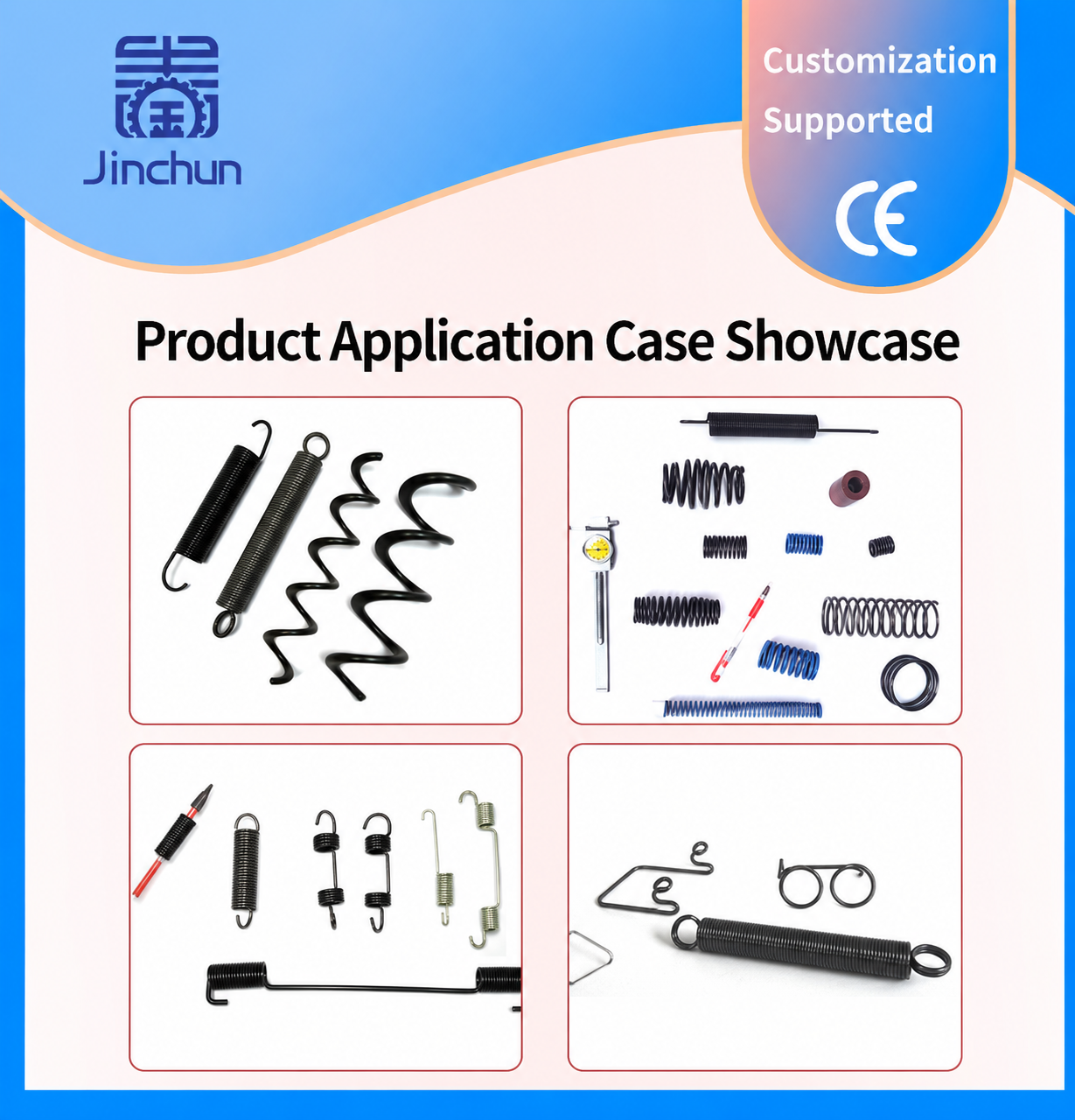

Compatible Spring Types
Depending on the tooling and machine configuration, the equipment can be evaluated for:
Extension springs with formed hooks, torsion springs, and complex wire forms may require different equipment or additional processing. Contact us to confirm feasibility.
Typical Applications
Material Compatibility
The machine can be configured for suitable carbon spring steel, stainless steel, alloy spring wire, and other formable metal wires. Compatibility depends on the material grade, wire diameter, tensile strength, surface condition, and finished spring geometry.
Information Required for Machine Selection
Custom options are available. Contact us to confirm the appropriate tooling, processing range, axis configuration, and production solution.

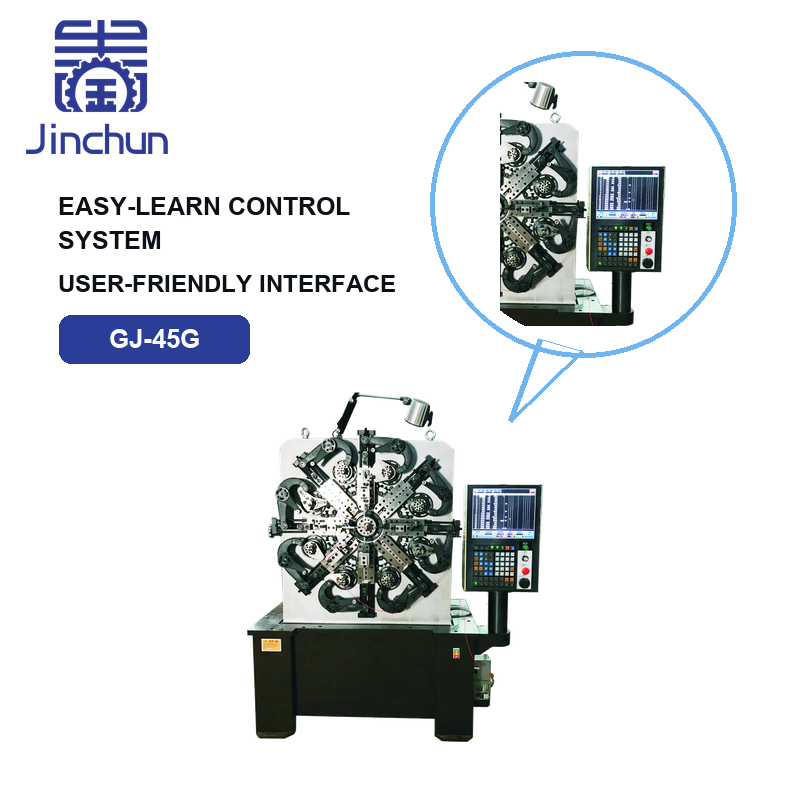

The four-axis control system coordinates the machine movements required by the programmed coiling process. Once the production setup has been verified, the same motion sequence can be repeated across a batch. Exact axis assignments depend on the selected machine configuration.
